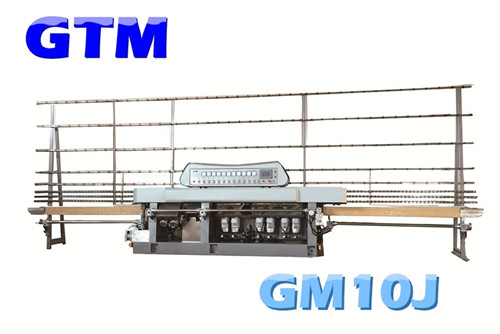

PRODUCT DESCRIPTIONS:
1. This machine can do the flat edger and miter the glass by changing the angles of the spindles;
2. Conveyor belt is timed from input to output to improve the transfer accuracy;
3. The surface of glass will be bright and smooth after processed, approaching the original glass surface;
4. It is with PLC system.
TECHNICAL PARAMETERS:
Processing Glass Thickness
3-25mm
Miter Angle
0°-60°
Min.Processing Size
80mm*80mm
Processing Speed
0.6-5.8m/min
Power
22.5kw
Size
7800*1400*2500mm
Weight
3500kgs
Spindle Quantity
10pcs
1. This machine can do the flat edger and miter the glass by changing the angles of the spindles;
2. Conveyor belt is timed from input to output to improve the transfer accuracy;
3. The surface of glass will be bright and smooth after processed, approaching the original glass surface;
4. It is with PLC system.
TECHNICAL PARAMETERS:
Processing Glass Thickness
3-25mm
Miter Angle
0°-60°
Min.Processing Size
80mm*80mm
Processing Speed
0.6-5.8m/min
Power
22.5kw
Size
7800*1400*2500mm
Weight
3500kgs
Spindle Quantity
10pcs
