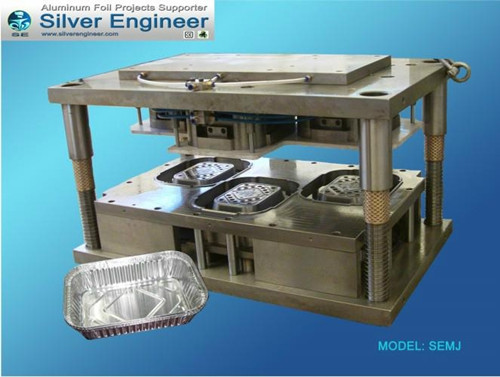

Units: Automatic Feeder+Automatic 63Ton Press+Cavities Mould+Auto Stacker+Scrap Sucker& Presser.
It fit for all common size Aluminium Foil Container production requested. The Big capacity could to cover big range of size products. Lower power requested than other old model machines.
Specification:
1.Raw material: Aluminum foil; Thickness: 0.030mm ~0.250mm;
Alloy: 8011,8006,3003,3005; Temper O to H24;
2.Good Japans Inverter, PLC and 10inch Touch Screen control system;
3.Max. width of Aluminum foil: 800mm;
4.Max. diameter of Aluminum foil: 700mm;
5.Core diameter of Aluminum foil: 76mm(152mm as Optional );
6.Working speed: 40-68 times/min;
7.Total Power: 11.5kw+2kw+2.5kw+3kw;
8.Compressed air needed: 0.5- 0.8 Mpa, 0.3m3/min;
9.Install dimension: 6000*2600*3300mm;
Keywords: aluminum foil container machine,aluminum foil container tool, aluminum foil rewinder,aluminum foil machine,aluminum foil container making machine, aluminum foil wrap, aluminum foil co
It fit for all common size Aluminium Foil Container production requested. The Big capacity could to cover big range of size products. Lower power requested than other old model machines.
Specification:
1.Raw material: Aluminum foil; Thickness: 0.030mm ~0.250mm;
Alloy: 8011,8006,3003,3005; Temper O to H24;
2.Good Japans Inverter, PLC and 10inch Touch Screen control system;
3.Max. width of Aluminum foil: 800mm;
4.Max. diameter of Aluminum foil: 700mm;
5.Core diameter of Aluminum foil: 76mm(152mm as Optional );
6.Working speed: 40-68 times/min;
7.Total Power: 11.5kw+2kw+2.5kw+3kw;
8.Compressed air needed: 0.5- 0.8 Mpa, 0.3m3/min;
9.Install dimension: 6000*2600*3300mm;
Keywords: aluminum foil container machine,aluminum foil container tool, aluminum foil rewinder,aluminum foil machine,aluminum foil container making machine, aluminum foil wrap, aluminum foil co
