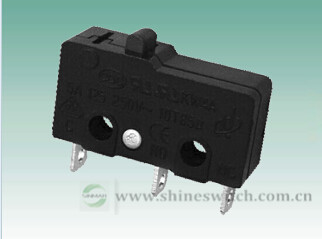

Shanghai Sinmar Electronics KW4A-Z0 Micro Switches 5A250VAC 3PIN Basic Form switches
Product ID: KW4A-Z0
Send Inquiry
Operating speed:0.1mm~1m/s(Related with actuator forms)
Rating:5A250VAC(default) /10A250VAC
Operating frequency: Mechanical 60cycles/min; Electrical 25 cycles/min
Insulation resistance: ≥100mΩ(500VDC)
Contact resistance: ≤30mΩ(Initial value)
Test voltage: Between terminal of the same polarity AC1000V,50/60Hz,1min
Between current-carrying metal parts and
Ground, and between each terminal and non- AC3750V,50/60Hz,1min Current-carrying metal part.
Vibration resistance:10~55Hz,1.5mm double amplitude
Shock resistance: Destruction OF >0.5N:1000M/S^2(approx.100G)max
OF≤0.5N:500M/S^2(approx.50G)max
Malfunction OF >0.5N:300M/S^2(approx.30G)max
OF≥0.5N:200M/S^2(approx.20G)max
Life expectancy: mechanical≥1,000,000 cycles
electrical≥10,000c cycles
Weight: approx. 1.6g(no lever)
Safety approvals: UL,CUL,VDE,TUV,CE,CQC
Rating:5A250VAC(default) /10A250VAC
Operating frequency: Mechanical 60cycles/min; Electrical 25 cycles/min
Insulation resistance: ≥100mΩ(500VDC)
Contact resistance: ≤30mΩ(Initial value)
Test voltage: Between terminal of the same polarity AC1000V,50/60Hz,1min
Between current-carrying metal parts and
Ground, and between each terminal and non- AC3750V,50/60Hz,1min Current-carrying metal part.
Vibration resistance:10~55Hz,1.5mm double amplitude
Shock resistance: Destruction OF >0.5N:1000M/S^2(approx.100G)max
OF≤0.5N:500M/S^2(approx.50G)max
Malfunction OF >0.5N:300M/S^2(approx.30G)max
OF≥0.5N:200M/S^2(approx.20G)max
Life expectancy: mechanical≥1,000,000 cycles
electrical≥10,000c cycles
Weight: approx. 1.6g(no lever)
Safety approvals: UL,CUL,VDE,TUV,CE,CQC
