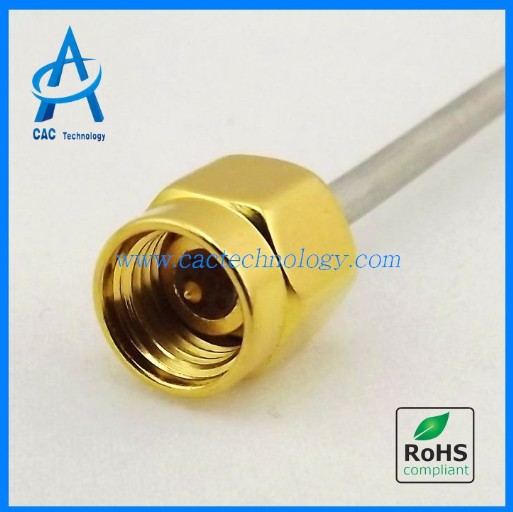

40GHz RF phase stable low loss with 2.92mm 2.4mm connector
Product ID: L22P1-29MG29MG-200
Send Inquiry
Quick Details
Place of Origin: Anhui, China (Mainland) Brand Name: CACTechnology Model Number: L22P1-29MG29MG-200 Conductor Material: silver plated copper Insulation Material: LD PTFE Jacket: N/A Number of Conductors: 1 Application: low loss,phase stable harsh demanding application Cable typpe: semi-rigid , phase stable Cable Attenuation: 3.3dB/m @ 40GHz Suitable Connector: 2.92mm 2.4mm Material of Connector: brass , gold plated Typical VSWR: 1.25 max up to 40GHz Power Handing: 55W@40GHz
Packaging & Delivery
Packaging Details: Exporting package with each part being seperated
Delivery Detail: 2 weeks
Specifications
40GHz 2.92mm semi-rigid RF Coaxial Cable Assembly
1. semi-rigid cable ;
2. Insulation Materials: LD PTFE;
3. phase stable ;
40GHz RF semi-rigid Coaxial Cable Assembly phase stable low loss with 2.92mm 2.4mm connector
-------L22P1-29MG29MG-200 RF Coaxial Cable Assembly --------
1. Semi-rigid RF cable assembly
Place of Origin: Anhui, China (Mainland) Brand Name: CACTechnology Model Number: L22P1-29MG29MG-200 Conductor Material: silver plated copper Insulation Material: LD PTFE Jacket: N/A Number of Conductors: 1 Application: low loss,phase stable harsh demanding application Cable typpe: semi-rigid , phase stable Cable Attenuation: 3.3dB/m @ 40GHz Suitable Connector: 2.92mm 2.4mm Material of Connector: brass , gold plated Typical VSWR: 1.25 max up to 40GHz Power Handing: 55W@40GHz
Packaging & Delivery
Packaging Details: Exporting package with each part being seperated
Delivery Detail: 2 weeks
Specifications
40GHz 2.92mm semi-rigid RF Coaxial Cable Assembly
1. semi-rigid cable ;
2. Insulation Materials: LD PTFE;
3. phase stable ;
40GHz RF semi-rigid Coaxial Cable Assembly phase stable low loss with 2.92mm 2.4mm connector
-------L22P1-29MG29MG-200 RF Coaxial Cable Assembly --------
1. Semi-rigid RF cable assembly
Certificate
- rosh
- ISO9001
Main Products
RF Coaxial Connectors, RF Coaxial Adapters, RF Microwave Coaxial Cable
