Advantages:
1.Corrosion Resistant: resist chemical matters and electron chemical corrosion
2.Low Flow Resistance: smooth interior walls and low friction
3.Excellent Flexibility: can be supplied in coil
4.Easy Installation: light weight and handed friendly
5.Longevity:can work for more than 50 years under proper use
6.Various Joint Availability: butt fusion joint, electro fusion joint and transition joint
7.Recycled and Environment-friendly
Applications:

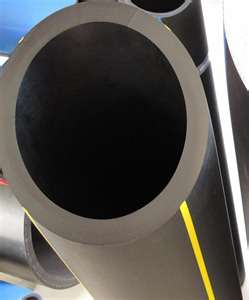

PE gas pipe is suitable for gas transportation on condition that working temperature is among -20℃~40℃ , and long-term maximum working pressure is not more than 0.7MPa. Junxing Polyethylene Gas Pipe is suitable for Gas distribution network both for domestic & industrial consumption.
Technical Data Sheet:
SR Property Units Requirements Test Parameters Test Method
1 Wall Thickness mm PE - 80 & PE -100 SDR series - ISO-3126 IS-14885
2 Hydrostatic Strength (HS) h Failure time > 100 h PE-80-9.0 MPa-20ºC ISO-1167IS-14885
Failure time > 165 h PE-80-4.6 MPa-80ºC
Failure time > 1000 h PE-80-4.0 MPa-80ºC
3 Elongation at Break % = 350 - ISO-6259/3IS-14885
4 Density Kg/m³ = 930 23ºC ISO-1183 IS-7328
5 Thermal Stability(Oxidation Induction Time) Min. = 20 200ºC ISO TR10837IS-14885
6 Melt Flow Rate 9/10 Min 0.2 to 1.1 190ºC 5 Kg IS-14885
7 Tensile Strength MPa 15 Min 23ºC IS: 14885
8 Elongation at Break % 350 Min 23ºC IS: 14885
Technical Specification:
Outer Dia. Wall Thickness in mm
SDR 17.6 SDR 11
mm MIN MAX MIN MAX
32 2.3 2.7 3 3.4
40 2.3 2.7 3.7 4.2
50 2.9 3.3 4.6 5.2
63 3.6 4.1 5.8 6.5
75 4.3 4.9 6.8 7.6
90 5.2 5.9 8.2 9.2
110 6.3 7.1 10 11.2
125 7.1 8 11.4 12.7
140 8 9 12.7 14.1
160 9.1 10.2 14.6 16.2
180 10.3 11.5 16.4 18.2
200 11.4 12.7 18.2 20.2
225 12.8 14.2 20.5 22.7
250 14.2 15.8 22.7 25.1
280 16 17.7 25.4 28.1
315 17.9 19.8 28.6 31.6
355 20.2 22.4 32.3 35.7
400 22.8 25.2 36.4 40.2
450 25.6 28.3 41 45.2
500 28.5 31.5 45.5 50.2
560 31.9 35.2 51 56.2
630 35.8 39.5 57.3 63.2
1.Corrosion Resistant: resist chemical matters and electron chemical corrosion
2.Low Flow Resistance: smooth interior walls and low friction
3.Excellent Flexibility: can be supplied in coil
4.Easy Installation: light weight and handed friendly
5.Longevity:can work for more than 50 years under proper use
6.Various Joint Availability: butt fusion joint, electro fusion joint and transition joint
7.Recycled and Environment-friendly
Applications:
PE gas pipe is suitable for gas transportation on condition that working temperature is among -20℃~40℃ , and long-term maximum working pressure is not more than 0.7MPa. Junxing Polyethylene Gas Pipe is suitable for Gas distribution network both for domestic & industrial consumption.
Technical Data Sheet:
SR Property Units Requirements Test Parameters Test Method
1 Wall Thickness mm PE - 80 & PE -100 SDR series - ISO-3126 IS-14885
2 Hydrostatic Strength (HS) h Failure time > 100 h PE-80-9.0 MPa-20ºC ISO-1167IS-14885
Failure time > 165 h PE-80-4.6 MPa-80ºC
Failure time > 1000 h PE-80-4.0 MPa-80ºC
3 Elongation at Break % = 350 - ISO-6259/3IS-14885
4 Density Kg/m³ = 930 23ºC ISO-1183 IS-7328
5 Thermal Stability(Oxidation Induction Time) Min. = 20 200ºC ISO TR10837IS-14885
6 Melt Flow Rate 9/10 Min 0.2 to 1.1 190ºC 5 Kg IS-14885
7 Tensile Strength MPa 15 Min 23ºC IS: 14885
8 Elongation at Break % 350 Min 23ºC IS: 14885
Technical Specification:
Outer Dia. Wall Thickness in mm
SDR 17.6 SDR 11
mm MIN MAX MIN MAX
32 2.3 2.7 3 3.4
40 2.3 2.7 3.7 4.2
50 2.9 3.3 4.6 5.2
63 3.6 4.1 5.8 6.5
75 4.3 4.9 6.8 7.6
90 5.2 5.9 8.2 9.2
110 6.3 7.1 10 11.2
125 7.1 8 11.4 12.7
140 8 9 12.7 14.1
160 9.1 10.2 14.6 16.2
180 10.3 11.5 16.4 18.2
200 11.4 12.7 18.2 20.2
225 12.8 14.2 20.5 22.7
250 14.2 15.8 22.7 25.1
280 16 17.7 25.4 28.1
315 17.9 19.8 28.6 31.6
355 20.2 22.4 32.3 35.7
400 22.8 25.2 36.4 40.2
450 25.6 28.3 41 45.2
500 28.5 31.5 45.5 50.2
560 31.9 35.2 51 56.2
630 35.8 39.5 57.3 63.2
