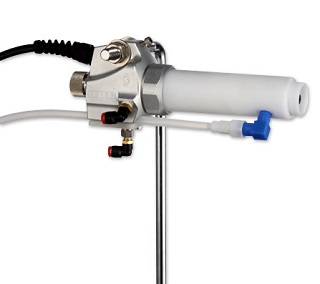

Home > Products > Automatic Reciprocating System > A-90 Air-based Automatic Electrostatic Spray Gun
Products Specification:
•Model: TC-90
•Capacity for withstanding voltage: DC-80KV
•Voltage used for operation: DC-10~-80KV
•Total length (spray gun body): 232mm
When the TCH-60 flat spray nozzle is installed275 mm
When the TCN-20 or TCP-35 round spray nozzles are installed300 mm
•Spray gun weight (not including the cables, hoses, or nozzles): 1.5kg
•Power cable length: 3m、5m、10m、15m
•Coating material pressure: 0.3Mpa / 0.8Mpa
•Air pressure: 0.05Mpa / 0.8Mpa
Products Specification:
•Model: TC-90
•Capacity for withstanding voltage: DC-80KV
•Voltage used for operation: DC-10~-80KV
•Total length (spray gun body): 232mm
When the TCH-60 flat spray nozzle is installed275 mm
When the TCN-20 or TCP-35 round spray nozzles are installed300 mm
•Spray gun weight (not including the cables, hoses, or nozzles): 1.5kg
•Power cable length: 3m、5m、10m、15m
•Coating material pressure: 0.3Mpa / 0.8Mpa
•Air pressure: 0.05Mpa / 0.8Mpa
