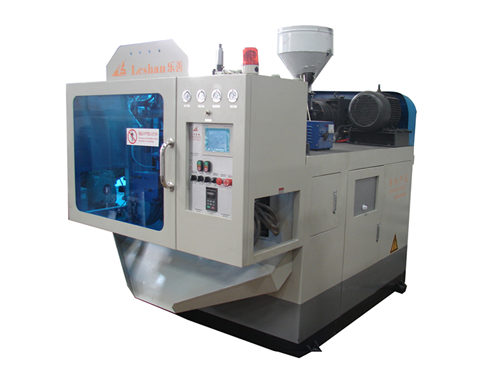

55YG2*1.1B
Max Volume Blown:1 L
Applied Material:PE,PP,PS,PC,PVC
No.Of Die Head:1
Central Distance:/
No.Of Station:2
Screw Dia:55 mm
L/D Ratio:23
Screw Rotating Speed:20-60 rpm
Max Plasticing Capacity:32 kg/h
Extruding Motor Power:11 kw
Oil Pump Motor Power:4 kw
Barrel Zone:3
Barrel Heating Power:7.2 kw
Head Heating Zone:2
Head Heating Power:3.2 kw
Transformer Power Of Hot Cutter:2 kw
Total Power:27.4 kw
Min Clamping Distance Of Mold:130 mm
Mold Stroke:150 mm
Max Size Of Mold:230x280 mm
Clamping Force:17 KN
Net Weight:2200 kg
Dimension Of Machine:2.4×2.1×1.75 m
Pressure of Hydraulic System:14 Mpa
Pressure of Pneumatic System:0.6-0.8 Mpa
Pressure of Cooling System:0.2-0.3 Mpa
Air Consumption:3 m3/hrv
Applied Material:PE,PP,PS,PC,PVC
No.Of Die Head:1
Central Distance:/
No.Of Station:2
Screw Dia:55 mm
L/D Ratio:23
Screw Rotating Speed:20-60 rpm
Max Plasticing Capacity:32 kg/h
Extruding Motor Power:11 kw
Oil Pump Motor Power:4 kw
Barrel Zone:3
Barrel Heating Power:7.2 kw
Head Heating Zone:2
Head Heating Power:3.2 kw
Transformer Power Of Hot Cutter:2 kw
Total Power:27.4 kw
Min Clamping Distance Of Mold:130 mm
Mold Stroke:150 mm
Max Size Of Mold:230x280 mm
Clamping Force:17 KN
Net Weight:2200 kg
Dimension Of Machine:2.4×2.1×1.75 m
Pressure of Hydraulic System:14 Mpa
Pressure of Pneumatic System:0.6-0.8 Mpa
Pressure of Cooling System:0.2-0.3 Mpa
Air Consumption:3 m3/hrv
Certificate
- ISO/CE
Main Products
All kinds of blow moulding,High-quality mould
