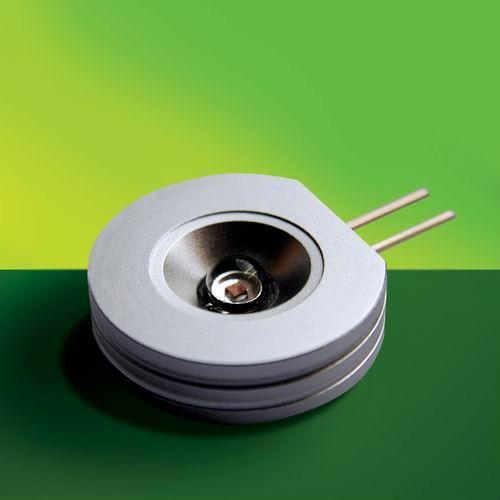

G4 LED lights parameter:
. Input Voltage: DC 7-30V / AC12V
. Power Consumption: 1W
. Measurements with Alu. Cover: θ26*7mm
. Bi-pin length: 11mm
. Power Factor: ≥0.9
. IP ratingIP40, indoor use
.Operating temperature: -20oC to +60oC
. With overtension protection (≤40V)
. Brightness Decay: 3%-5% at 1000 hours
. Dimmable No
. UV radiation: No
. IR radiation: No
. Warranty: 2years
. With quality famous-brand LED Inside(CREE, Bridgelux, Edison LED for option)
Model No.
Input
Voltage
LED
Power
LED
Brand
Brightness
Beam
Angle
Emitting
Color
Power
DSG4C-D25-1WCN-SW
7-30V
3W
CN
60-70LM
120o
Warm White
(2800~3500K)
1W
DSG4C-D25-1WCN -SP
7-30V
3W
CN
80-100LM
120o
Pure White
(6000~6500K)
1W
DSG4C-D25-1WCN -SC
7-30V
3W
CN
110-120LM
120o
Cool White
(7000~8000K)
1W
DSG4C-D25-1W -SR
7-30V
1W
CN
50-60LM
120o
Red
1W
DSG4C-D25-1W -SB
7-30V
1W
CN
50-60LM
120o
. Input Voltage: DC 7-30V / AC12V
. Power Consumption: 1W
. Measurements with Alu. Cover: θ26*7mm
. Bi-pin length: 11mm
. Power Factor: ≥0.9
. IP ratingIP40, indoor use
.Operating temperature: -20oC to +60oC
. With overtension protection (≤40V)
. Brightness Decay: 3%-5% at 1000 hours
. Dimmable No
. UV radiation: No
. IR radiation: No
. Warranty: 2years
. With quality famous-brand LED Inside(CREE, Bridgelux, Edison LED for option)
Model No.
Input
Voltage
LED
Power
LED
Brand
Brightness
Beam
Angle
Emitting
Color
Power
DSG4C-D25-1WCN-SW
7-30V
3W
CN
60-70LM
120o
Warm White
(2800~3500K)
1W
DSG4C-D25-1WCN -SP
7-30V
3W
CN
80-100LM
120o
Pure White
(6000~6500K)
1W
DSG4C-D25-1WCN -SC
7-30V
3W
CN
110-120LM
120o
Cool White
(7000~8000K)
1W
DSG4C-D25-1W -SR
7-30V
1W
CN
50-60LM
120o
Red
1W
DSG4C-D25-1W -SB
7-30V
1W
CN
50-60LM
120o
