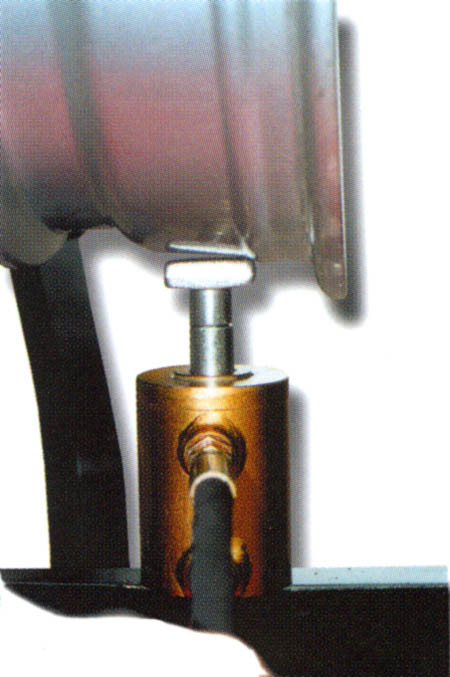

RSM2600
RSM2600 Rim Straightening Machine
Technical Specifications
DIMENSIONS
Height 1520 / 1540 / 1580 mm
Length 1200 / 1200 / 800 mm
Width 740 / 800 / mm
Gross Weight 280 / 300 / 320 Kg
MOTOR SPECIFICATIONS
Mechanic Motor 0,55 kw, 1400 rpm , 0,75 hp - 7,3 Ampere,
3 phase - single phase / 380 V - 220 V
Hydraulic Motor 0,55 / 0,75kw , 900 rpm, 1 hp - 7,3 Ampere
3 Phase - single phase // 380 V - 220 V
Sound Level 35 db
STANDARD ACCESSORIES LIST
1. 18 pcs rim attaching center
2. 1 pcs (mihengir) metal pointer
3. 6 pcs press tips
4. 3 pcs support axis for press tips
5. 1 pcs lever
6. 1 pcs lathe pen
7. 6 pcs upper support
8. 1 pcs lower support
9. 4 pcs Support pins
10. Flange nuts and bolts
OPTIONAL ACCESSORIES LIST
MMP150
SUS Surrounding Upper Support
AC Motor Drive / Speed Control Unit (SCU)
Technical Specifications
DIMENSIONS
Height 1520 / 1540 / 1580 mm
Length 1200 / 1200 / 800 mm
Width 740 / 800 / mm
Gross Weight 280 / 300 / 320 Kg
MOTOR SPECIFICATIONS
Mechanic Motor 0,55 kw, 1400 rpm , 0,75 hp - 7,3 Ampere,
3 phase - single phase / 380 V - 220 V
Hydraulic Motor 0,55 / 0,75kw , 900 rpm, 1 hp - 7,3 Ampere
3 Phase - single phase // 380 V - 220 V
Sound Level 35 db
STANDARD ACCESSORIES LIST
1. 18 pcs rim attaching center
2. 1 pcs (mihengir) metal pointer
3. 6 pcs press tips
4. 3 pcs support axis for press tips
5. 1 pcs lever
6. 1 pcs lathe pen
7. 6 pcs upper support
8. 1 pcs lower support
9. 4 pcs Support pins
10. Flange nuts and bolts
OPTIONAL ACCESSORIES LIST
MMP150
SUS Surrounding Upper Support
AC Motor Drive / Speed Control Unit (SCU)
Certificate
- CE
