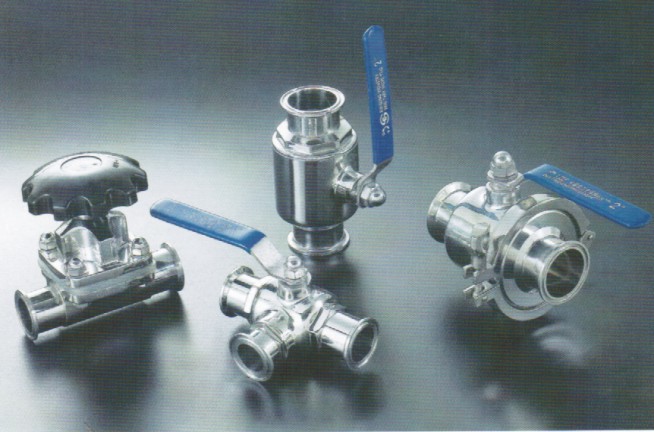

Sanitary Stainless Steel Ball Valve And Sanitary Stainless Steel Diaphragm Valve With Welded, Clamped, Male Threaded Ends
Sanitary Stainless Steel Ball Valve And Sanitary Stainless Steel Diaphragm Valve With Welded, Clamped, Male Threaded Ends
Product ID: SH21
Send Inquiry
1. Description of ball valve
Standard: SMS, DIN, 3A, ISO, DS, IDF
Material: SUS304, SUS304L, SUS316, SUS316L
Plux domination of pipeline: 3/4"-2 1/2"&DN25-DN100
2. Detailed parts of ball valve
Connection: Welded ends / clamped ends / threaded ends / flanged ends etc.
Manual actuator: 90 degree adjustment handle
Seal: EPDM & Silicone & PTFE.
Type: straight 2ways type & 3ways type & flanged ball valve etc.
3. Technical data
Power: Manual
Temperature: -10degree~105degree
Pressure: 0-10bar, Min pressure with vacuum; Max pressure with 10Bars
External part: Ra
Standard: SMS, DIN, 3A, ISO, DS, IDF
Material: SUS304, SUS304L, SUS316, SUS316L
Plux domination of pipeline: 3/4"-2 1/2"&DN25-DN100
2. Detailed parts of ball valve
Connection: Welded ends / clamped ends / threaded ends / flanged ends etc.
Manual actuator: 90 degree adjustment handle
Seal: EPDM & Silicone & PTFE.
Type: straight 2ways type & 3ways type & flanged ball valve etc.
3. Technical data
Power: Manual
Temperature: -10degree~105degree
Pressure: 0-10bar, Min pressure with vacuum; Max pressure with 10Bars
External part: Ra
Certificate
- ISO9001:2000:CE
Main Products
valves, sanitary stainless steel valve, pipe fitting, liquid equipment
