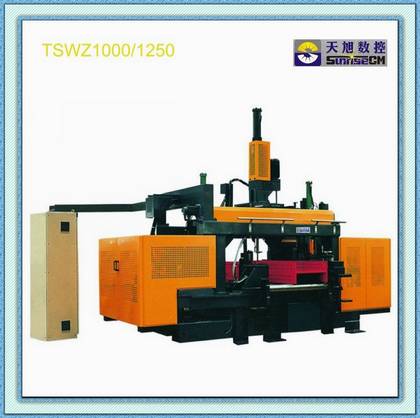

CNC Beams Drilling Machine Line
CNC H Beam Drilling Line
Product Basic Parameter:
Model TSWZ1000 TSWZ1250
Work piece
Size H-beams Max. (web height Flange width) (mm) Max. 1000x500 1250x600
Min. 150x75
Length (mm) Auto feeding 3000
Manual feeding 690
Max. Workpiece weight (kg) 5000 10000
Thickness of web & flange (mm) 80
Drilling dia. (mm) Vertical drilling 12~ 33.5
Horizontal drilling 12~ 26.5
Drilling spindles No. Of spindle One spindle on each of three sides (top, left, right) Total: 3 spindles
Rotation speed (stepless speed adjustment) (rpm) 180~650
Max. Feeding ** (mm) (Left, right): 140 (Top): 240 or 325
Feeding speed(mm/min) 20~300
Should Your Excellency need more information about us, please send us your inquiry.
Skype: susancql
Mobile: 0086-15954782100
GTalk: jnfastcnc
E-mail: chengsusan2004 at hotmail.com
Thanks and Best Regards,
Ms. Susan
JINAN SUNRISE CNC MACHINE CO.,LTD
Product Basic Parameter:
Model TSWZ1000 TSWZ1250
Work piece
Size H-beams Max. (web height Flange width) (mm) Max. 1000x500 1250x600
Min. 150x75
Length (mm) Auto feeding 3000
Manual feeding 690
Max. Workpiece weight (kg) 5000 10000
Thickness of web & flange (mm) 80
Drilling dia. (mm) Vertical drilling 12~ 33.5
Horizontal drilling 12~ 26.5
Drilling spindles No. Of spindle One spindle on each of three sides (top, left, right) Total: 3 spindles
Rotation speed (stepless speed adjustment) (rpm) 180~650
Max. Feeding ** (mm) (Left, right): 140 (Top): 240 or 325
Feeding speed(mm/min) 20~300
