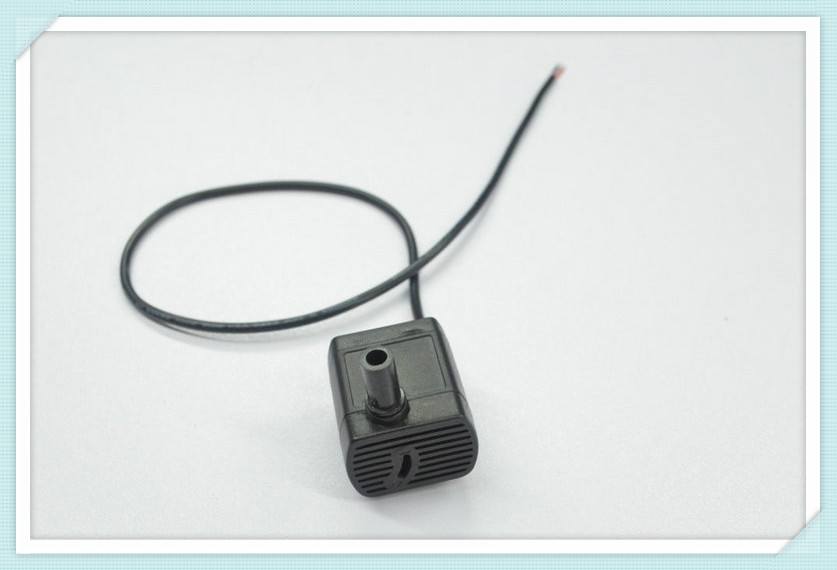

12 volt automobile circulating pump,small and long life
Parameter (The technical specification only for reference, it can be customized)
Model Voltage Rated Current Max flow Max water head Power
V A L/H G/H M ft w
ZK30-0404 4.5 0.10 100 26 0.4 1.3 0.45
Specification
NO Items Specs
1 Sizes and weight 34x36.5x39; 50g
2 Dimension of outlet Optional (8mm or 5mm or 6mm)
3 Driving method Brushless, Permanent Magnetic , 2 phase
4 Pump material ABS (optional)
5 Condition of use Continuously
6 Fluids Water, oil, gasoline, acid and alkali solution etc
7 Max working temp 60 Celsius
8 Power consumption 0.5W~4.2W
9 Rated voltage 12Vdc
10 Voltage used 4.5Vdc ~ 12Vdc
11 Max rated current 350mA
12 Max flow rate 4L/MIN(1.06G/MIN)
13 Max Static Head 1.9m(6ft)
14 Noise
Parameter (The technical specification only for reference, it can be customized)
Model Voltage Rated Current Max flow Max water head Power
V A L/H G/H M ft w
ZK30-0404 4.5 0.10 100 26 0.4 1.3 0.45
Specification
NO Items Specs
1 Sizes and weight 34x36.5x39; 50g
2 Dimension of outlet Optional (8mm or 5mm or 6mm)
3 Driving method Brushless, Permanent Magnetic , 2 phase
4 Pump material ABS (optional)
5 Condition of use Continuously
6 Fluids Water, oil, gasoline, acid and alkali solution etc
7 Max working temp 60 Celsius
8 Power consumption 0.5W~4.2W
9 Rated voltage 12Vdc
10 Voltage used 4.5Vdc ~ 12Vdc
11 Max rated current 350mA
12 Max flow rate 4L/MIN(1.06G/MIN)
13 Max Static Head 1.9m(6ft)
14 Noise
