Product ID: FW-8000

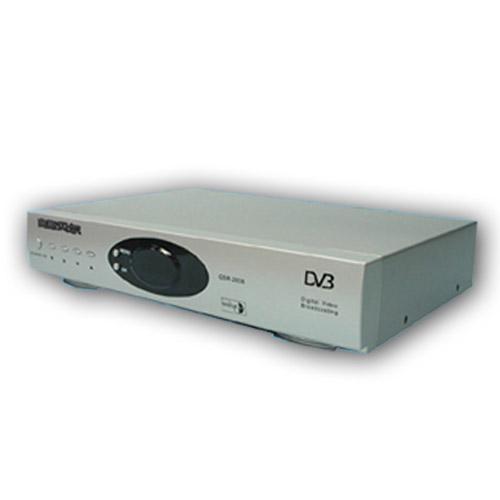

satellite receiver
Tuner:
Input Frequency Range: 950～2150MHz
Input Signal Level: -65～-25dBm
Impendance: 75W
LNB Power: 13/18V DC±10%0.5A max, overload protected
LNB 22KHZ Switch: 22KHz±2KHz0.6vpp±0.2v
DISEqc Control: Version 1.0, Tune burst A/B
Demodulation: QPSK
Symbol Rate: 1～45M symbols/sec.SCPC.NCPC
MPEG:
Transport Stream: Complaint with MPEG-2ISO/IEC 13818 standards
Input Rate: Max 90mbit/s
Video: MPEG-2 MP @ ML
Audio: MPEG-1/2 Audio layer 1, 2
Resolution: 720x576(PAL) 720x480(NTSC)
Audio sampling Frequency: 32/44.1/48KHz
RF Modulator:
RF-connector: 75Ωunbalanced,IEC169-2 male/female
Frequency Range: 470MHz to 86 MHz
Optional:
Output channel: CH21-69 optional
TV system: PAL B/G,PAL 1,PAL D/K NTSCM
Connector:
LNB input: F Type
LNB output: F Type
RCA out: CVBS, Audio(L,R) 0/12V DC Out
TV SCART(optional): CVBS,Audio,L,R output
VCR System: CVBS,Audio,L,R output
Serial Port: Rs232C D-sub female Type
Others:
Flash: 8Mbits
SDRAM: 64Mbits
Input Voltage: AC 8-270V, 50/60HZ
Power Consumption: Max 20W
|
satellite receiver
|
|
Specifications:
Digital satellite receiver^$Tuner:
Input Frequency Range: 950～2150MHz
Input Signal Level: -65～-25dBm
Impendance: 75W
LNB Power: 13/18V DC±10%0.5A max, overload protected
LNB 22KHZ Switch: 22KHz±2KHz0.6vpp±0.2v
DISEqc Control: Version 1.0, Tune burst A/B
Demodulation: QPSK
Symbol Rate: 1～45M symbols/sec.SCPC.NCPC^#
|
