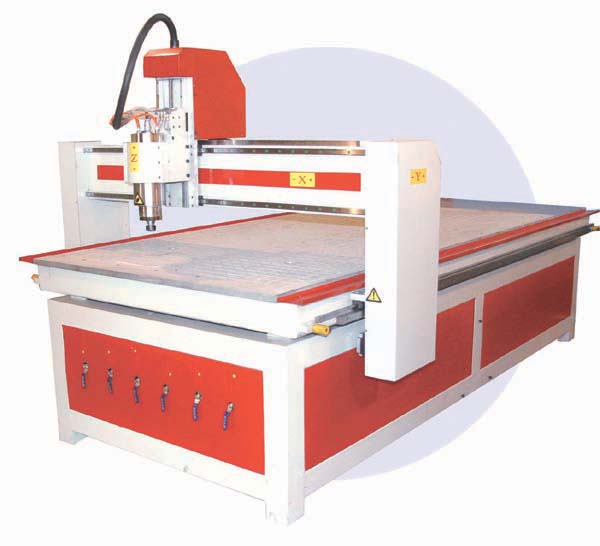

Product ID: 3DCNC Router

3D metal engraver

3、This machine has the characteristic of possessing dynamic renewal system. The customer can change the operation ability of system according to the different requirement.
4、The CNC ROUTER has 32M saving capacity . It can store more than 3 processing files simultaneously and read one at random
5、The CNC ROUTER connect s with the computer via USB interface. It enables s data to be transmitted in a second. It can work under the system Window98/NT/2000/XP.
6、This machine has the characteristic of good compatibility . It can work under compatible software CAD/CAM; such as Type3, Artcut, castmate, Wentai, Coredraw. It can manufacture fancy embossment , shadow and 3D arts .
7、This machine has the performance for continuing engraving after point . It can hold more than 9 points and engrave anywhere.
wk6090

Specifications:
1) X,Y axis working area: 600 x 900mm
2) Z axis working area: <100mm
3) Table size: 720 x 1,150mm
4) Max. speed: 0 - 4,000mm/min
5) Max. working speed: 0 - 3,000mm/min
6) Working delicacy: 0.02mm
7) Reposition accuracy: 0.01mm
8) Max. Feeding height: 110mm
9) Command: G code x, μ00 x, mmg x, plt
10) Software: type 3 software, Wentai software, Artcam software
11) Max. power consumption: 2kW
12) Spindle:1.5kW variable speed, water cooled motor
13) Spindle speed: 24,000rpm
14) Work type: stepper
15) Weight: 220kg
16) Working voltage: AC 220V, 50/60 Hz
17) Memory: 32M
18) Manner of receiving data :USB
19) Running circumstance temperature: 0 - 45°C
20) Relative humidity: 30% - 75%
wk1224/WK1218/WK1212

Specifications:
1) X,Y axis working area: 1,220 x 2,440mm
2) Z axis working area: <100mm
3) Table size: 1,340 x 2,680mm
4) Max. speed: 0 - 4,000mm/min
5) Max. Working speed: 0 - 3,000mm/min
6) Working delicacy: 0.02mm
7) Reposition accuracy: 0.01mm
8) Max. feeding height: 110mm
9) Command: G code, u00, mmg, plt
10) Software: type3 software, Wentai software, Artcam software
11) Max. power consumption: 3.1kW
12) Spindle: 2.2kW variable speed, water cooled motor
13) Spindle speed: 24,000rpm
14) Work type: stepper
15) Weight: 900kg
16) Working voltage: AC 220V, 50 / 60Hz
17) Memory: 32M
18) Manner of receiving data: USB
19) Running circumstance temperature: 0 - 45°C
20) relative humidity: 30% - 75%

• Minimum Order: 1
