NS-Tech Co., Ltd.
|
Product ID: SATA

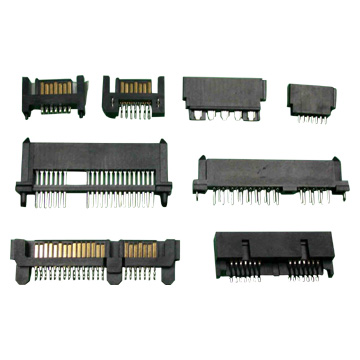

SATA Connectors
SATA conectors
|
SATA Connectors
|
|
Features:
spec^$Specifications:
1) Insulator: SPS or LCP UL94V-0
2) Contact: phosphor bronze
3) Plating:
Selective gold over nickel plated (contact area), TIN/Lead over
nickel plated (tail area)
4) Rating current: 1.5A
5) Contact resistance: <30mΩ
6) Insulation resistance: 1,000MΩ at 500V
7) Dielectric voltage: 500V at 1 minute
8) Operating temperature: -55oC ~ +125oC
^#
|
Main Product:
connectors
|
Ordering information:
- Minimum Order: Negotiable
|
