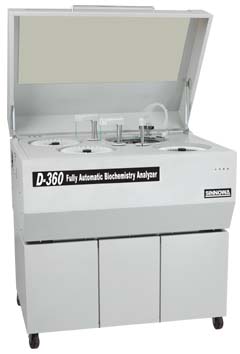

Fully automatic biochemistry analyzer D360
Product ID: 1
SINNOWA D-360 is a random access, high-speed fully automatic clinical chemistry analyzer, with intelligent multitasking software, automatic calibration, bar coding, innovative cuvettes washing station. The photometric trough put is 360 tests/hour and 600 tests/hour with integrated ISE module. Concentric sample and reagent-refrigerated disks compact and speed up the system.
- On line reagents
- 2 cooled trays, each contains 30 reagent positions and 88 samples positions including standard, control and stat.
- Assay type
- End Point, Kinetic, Differential, Bichromatic and Immunoturbidimetric,1-3 reagent assays and all user programmable
- Throughput
- 360 test/hr without ISE, 600 test/hr with ISE
- Optics system
- Photometer: multi-wavelength optics
- Wavelength: 8 narrow band interferential filters
- Light source: halogen lamp 12V/50W
- Optical path: 8 mm.
- Linear range: 0.001 - 2.500 Abs
- Resolution: 0,001 Abs
- Dispensingarm:
- one sample/two reagent arms with:
- - capacitive liquid level sensing
- - reagent pre-warming at 37蚓
- - automatic probe washing
- Diluter:
- dilutions are made without using traditional syringes with the following specifications:
- - sample volume: 1.0 - 100ul (1ul incr.)
- - reagent volume: 1.0 -600ul (1ul incr.)
- - high value sample may be diluted automatically or on request
- Reactionplate
- - 90 high quality cuvettes
- - automatic cuvette washing
- - cuvettes Q.C. continuously computer controlled
- OPTIONS:
- - Benchtop model
- - Positive barcode reader -Special language software
- - Barcode system
- DIMENSION:
- 120cm*65cm*90cm
- Weight:
- 105Kg
