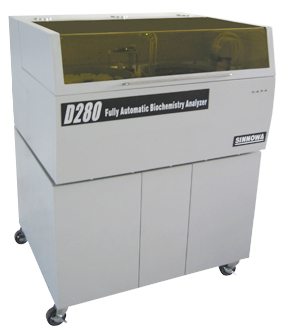

Fully automatic anaylzer D280
Product ID: 2
fully automatic-random access, continuous loading, benchtop analyzer for Clinical Chemistry and Immunoturbidimetric assays
- Assay type
- End Point, Kinetic, Differential, Bichromatic and Immunoturbidimetric,1-3 reagent assays and all user programmable.
- Test entry mode:
- selective - profiles - batch - stat
- On line reagents:
- 1 cooled trays, 30 reagent positions and 60 samples positions including standard, control and stat.
- Stat samples processing:
- allowed at any time
- Reading system:
- direct photometry
- Minimum reaction volume: 180 ul
- Optics system
- Photometer: multi-wavelength optics
- Wavelength: 8 narrow band interferential filters
- Light source: halogen lamp 12V/50W
- Optical path: 8 mm.
- Linear range: 0.001 - 2.500 Abs
- Resolution: 0,001 Abs
- Dispensingarm:
- one sample/two reagent arms with:
- - capacitive liquid level sensing
- - reagent pre-warming at 37蚓
- - automatic probe washing
- Diluter:
- dilutions are made without using traditional syringes with the following specifications:
- - sample volume: 1.0 - 100ul (1ul incr.)
- - reagent volume: 1.0 -600ul (1ul incr.)
- - high value sample may be diluted automatically or on request
- Reactionplate:
- - 90 high quality cuvettes
- - automatic cuvette washing
- - cuvettes Q.C. continuously computer controlled
- OPTIONS:
- OPTIONS:
- - Benchtop model
- - Positive barcode reader -Special language software
- - Barcode system
- DIMENSION:130cm*100cm*85cm
- Weight: 90Kg
