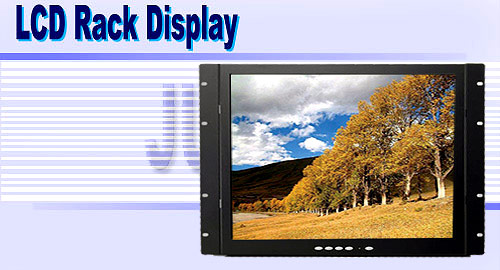

LCD Rack Monitor

Product ID: JB-D8U19

Send Inquiry
Specifications
  • LCD panel size: 19".
  • Active area (mm): 376.32 (H) x 301.056 (V).
  • Driver element: a-Si active matrix TFT color LCD.
  • Display colors: 16M.
  • Brightness: 280 (center) @ 7mA.
  • Contrast ratio: 500:1 (type).
  • Backlight unit: 4 CCFL.
  • Panel interface: LVDS.
  • Max. resolution: 1,280 x 1,024.
  • Input source: RGB analog.
  • D-sub: Analog 0.7 Vp-p separate sync., RGB analog.
  • Scan frequency: Support up to SXGA at 75Hz.
  • OSD function: Yes.
  • Front control button: 4 keys (power / up / manu / down).
  • Power (TFT display): 100/240 VAC, 50/60 Hz, 48 watts max.
Features
  • Rugged metal construction.
  • Built-in OSD switch function.
  • Standard D-sub 15 pin VGA input connector.
  • Supplied with 12V 5A remote power adapter (single power source).
  • Lower power consumption.
Certificate
  • CE / FCC / RoHS / EMS
