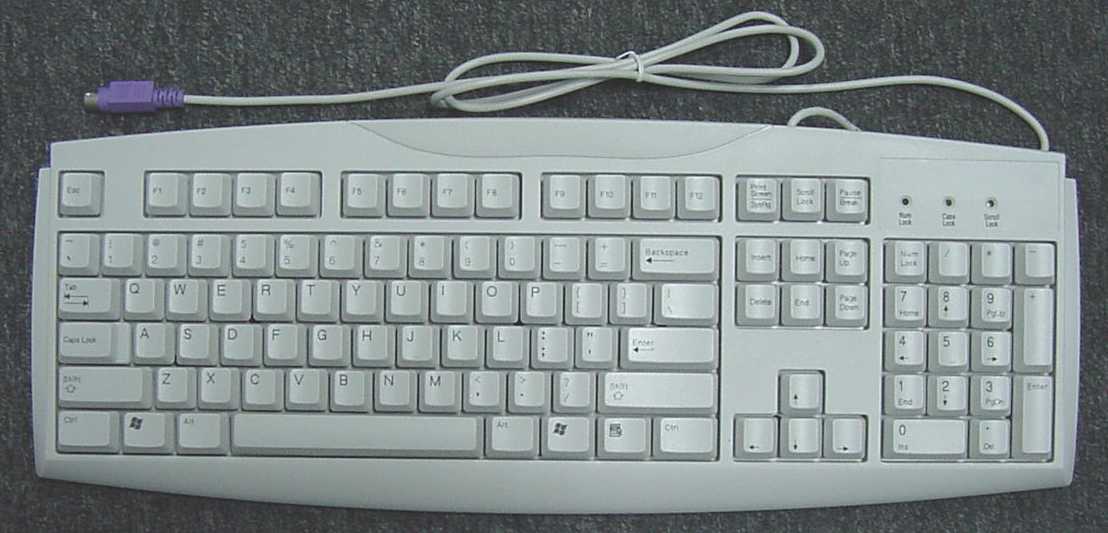

Standard Keyboard
Product ID: LK-2799-S
Features :
- Ergonomic design
- Membrane key switch with tactile feedback
- Complian with Windows 95, 98, XP, NT and 2000
- Agency approval : FCC, UL, CSA, CE and TUV-GS
Compatibility :
- Fully compatible with PC AT, PS/2 and Windows OS
Dimensions & Weights :
Unpacked Packed
Length : 460mm 475mm
Width : 173mm 190mm
Height : 34mm 48mm
Weight : 0.55 kg 0.68 kg
EMI :
FCC class B, CE
Safety :
UL, CSA, TUV-GS
Connector :
6 pin mini DIN assignment for PS/2
- Electrical Specification
- 1.1 Operating voltage
- Voltage supplied to keyboard is 5+/- 0.25 Vdc.
- 1.2 Current consumption
- Under 5 V power supplied, current consumption is 60mA max with 3 leds on.
- 1.3 Power consumption
- Under normal operation, less tha 0.30 W.
- 1.4Pin out of 6 pin min-DIN connector
- Rubber force characteristics
- Peak force 55+/- 10 gram
- total travel 3.5+/- 0.3mm
- Standard keys life cycles
- 5 millions cycles.
- Dimensions & Weights :
- Unpacked Packed
- Length : 460mm 475mm
- Width : 173mm 190mm
- Height : 34mm 48mm
- Weight : 0.55 kg 0.68 kg
- Compatibility :
- - Fully compatible with PC AT, PS/2 and Windows OS
- Agency approval : FCC, UL, CSA, CE
- Ergonomic design
- Membrane key switch with tactil
- Complian with Windows 95, 98, XP, N
- FCC
- UL
- CSA
- CE and TUV-GS
