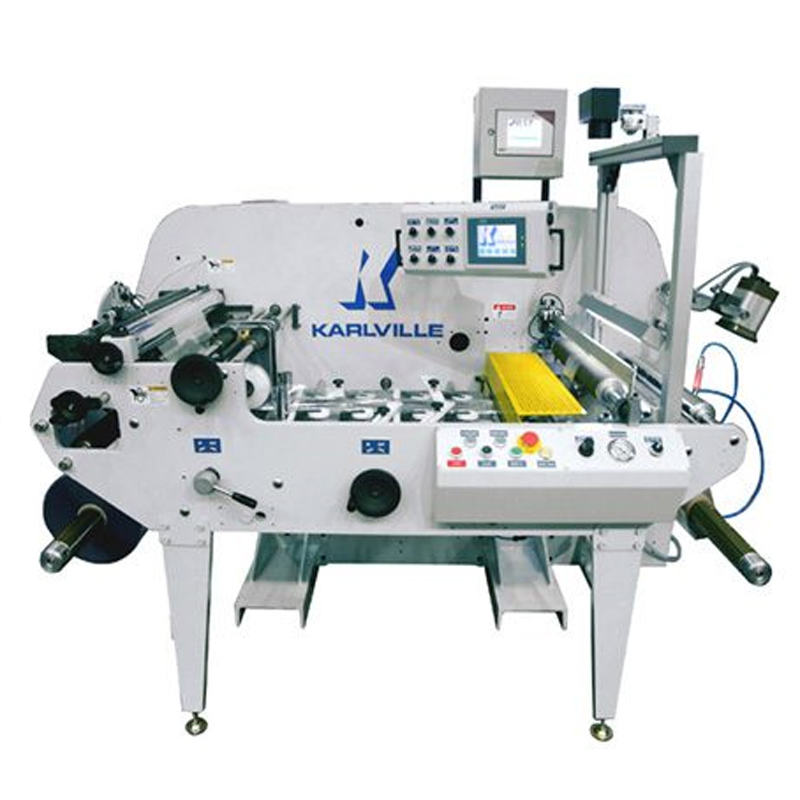

Seaming Machine
Product ID: SEM K2
- Speed 300m/min
- Available Widths 300/400 mm
- Material Widths 620/820 mm
- Unwind Diameter 600 mm
- Rewind Diameter 600 mm
- Minimum Lay Flat Width 55 mm with 18 mm Option
- Core Diameter 3”(76mm), (5 or 6" as optional)
- Lay Flat Tolerance 0.25 mm
- Adjustable Forming System
Specifications:
- for Shrink sleeve
- Stable and heavy-duty frame for high speed operation of 300 m/min.
- Adjustable forming plate creates efficient operation.
- Auto solvent feeding control.
- Auto tension control for unwind/rewind unit to maintain the optimun tension.
- Accurate product width.
- Cantilevered rewind/unwind shaft for fast roll changeover.
- PLC with color touch screen control system.
- Rewind oscillation control to produce high quality rolls.
Main Products:
Slitting Machine, rewinding machine,Re-Reeling, Doctor Machine, Proofing Machine, Rotogravure Printing Press, Dry Lamination Machine
