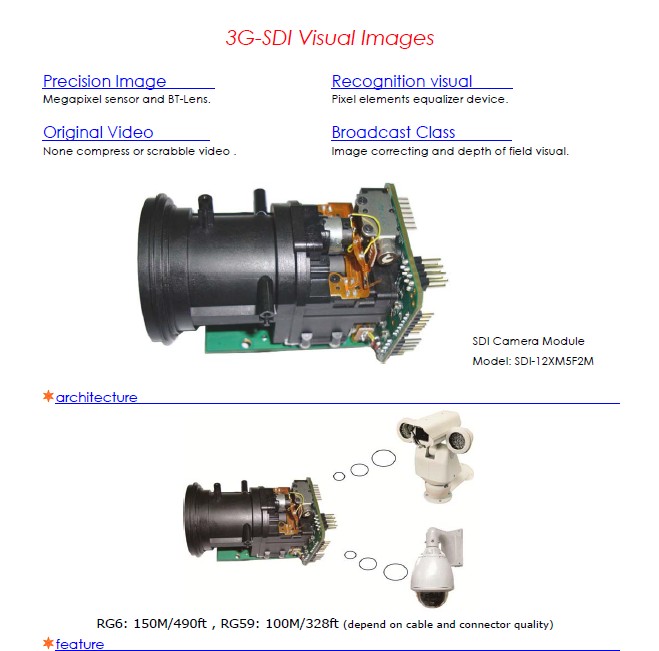

Camera Module

Product ID: SDI-12X

Send Inquiry
Features:

  •  2 megapixel progressive CMOS
  •  Full High Definition: 1920x1080P @ 30fps
  •  2.97Gb/sec, SMPTE424M
  •  Megapixel Lens 12x (5~60mm)
  •  BT-Auto IRIS (depth of fileds)
  •  HDR wide dynamic range
  •  Easily installation over existing coasial infrastructure
  •  HDMI connector (Optional)
  •  Very Low power consumption
  •  POC power over cable DC5V~25V, 1.5W
  •  2D NDR noise digital reduce
  •  Infar-Red Ø 8x36pcs LED
Camera:

Specification
 Image sensor  1/2.7'' inch Progressive Scan CMOS
 Effective pixels  1980 x 1080
 Min Illumination  Color 1 Lux @ F1.2  B/W: 0.5Lux @F1.2
 Electronic Shutter  1/60(default) ~ 1/20,000s
 Day & Night  day and night optical filter
 Lens Mount  special mount
 Auto IRIS  BT-Auto IRIS
 Video Parameter   EV/HDR/Gain/Color/BW


Visual:

Specification
 Visual Format  Pixel to pixel, 16:9, true vision
 Visual Resolution  Full HD: 1920 x 1080, 1080p@30fps,
 HD: 1280 x 720p, 720p@60fps
 Picture AC Hz SW  50Hz/60Hz selectable
 S/N ration  52dB, AGC off
 Sensor correction  Pixel element balance
 Lens correction  Distortion correction
 Output trans rate  2.97Gb/second
 Output connector  3G-SDI, BNC 75ohm
 Green Power  High performance, Low consumptions
 POC (power on cable)   DC12V(Default), DC5~DC25V, 1.5W
 Cable Distance  RG6: 150M/490ft, RG59: 100M/328ft


Others:

Specification
 Megapixel Auto IRIS  12 x (5mm~60mm), Megapixel Auto IRIS
 Output conector  HDMI / USB optional
 Output O/E Fiber  By order
 Storage Temperature  -20°C ~ 70°C
 Operating Temperature    -10°C ~ 60°C
 Operating Humidity  Under 90% Non-condensing
 Dimension    -
