DVR

Product ID: G-6016

DVR

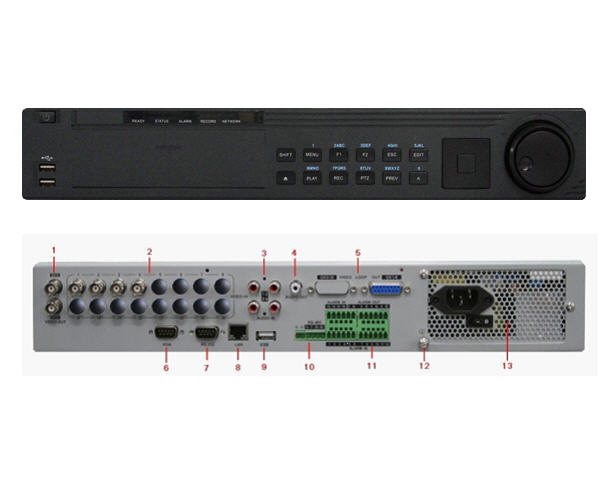

Interfaces Descriptions
*VIDEO OUT (MAIN, SPOT)
*VIDEO IN
*AUDIO IN
*AUDIO OUT
*VIDEO LOOP OUT
*VGA OUT
*RS-232 Serial Port
*LAN Network Interface
*USB Interface
*RS-485 Serial Interface
*ALARM IN, ALARM OUT, Keyboard Interface (support cascade)
*GND when cascading multiple devices, it is required that grounding through GND first, and then connecting to the protection ground of control keyboard and power input.
*100~240VAC Power Input

Features:

*H.264 video compression

*UP to 4CIF recording Each channel supports dual stream

*Up to 16-ch synchronous playback

*Up to 4 SATA HDD at 2TB each

Model	-	G-6016
Video/Audio Input	Video Compression	H.264
	Video Input	16-ch, BNC(1.0Vp-p, 75Ω), PAL/NTSC adaptive
	Audio Compression	OggVorbis
	Audio Input	4-ch, RCA(2.0Vp-p, 1kΩ)
	Voice Talk Input	1-ch, (Using AUDIO IN 1)
Video/Audio Output	Preview Resolution	PAL: 704×576 NTSC: 704×480
	VGA output	1, Resolution: 1024×768/60Hz
	Playback Resolution	4CIF/2CIF/CIF/QCIF
	Synchronous Playback	16-ch
	Video Output	2-ch, BNC(1.0Vp-p, 75Ω)
	Video Loop Output	16-ch, 2 DB15
	Frame Rate (per channel)	4CIF: 2fps; 2CIF:12fps; CIF:25(P)/30(N)fps
	Bit Rate	32Kbps~2048Kbps, or user-defined
	Audio Output	1-ch, RCA(Linear, 600Ω)
	Audio Bit Rate	16kbps
Hard Disk	Interface Type	4 SATA Interfaces
	Capacity	Each supports up to 2TB capacity
External Interfaces	Network Interface	1, RJ45 10M/100M adaptive Ethernet interface
	Serial Interfaces	1 RS-232 interface (for parameters configuration, maintenance, transparent channel);
	USB Interface	2, USB2.0
	Alarm In	16
	Alarm Out	4
Others	Power Supply	100~240VAC, 6.3A, 50~60Hz
	Consumption	≤40W(without hard disk or DVD-R/W)
	Working temperature	-10℃~+55℃
	Working humidity	10%~90%
	Chassis	19” standard chassis
	Size(mm)	70mm(H)×440mm(W)×390mm(D)
	Weight	≤8Kg(without hard disk or DVD-R/W)
