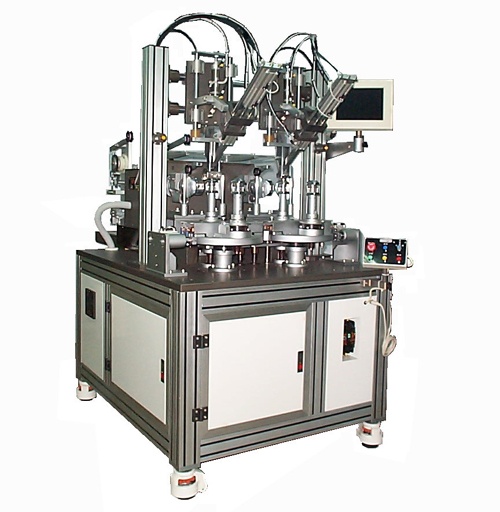

Dual Axle Multi-Pole CNC Automatic Winding Machine SM-520 CNC

Product ID: SM-520 CNC

Send Inquiry
Specifications
  • Diameter of Wire to be Wound: 0.4 ~ 1.2mm
  • Winging Width: 0 ~ 55mm
  • Thickness of Spindle: 10 ~ 35mm
  • No. of Appropriate Winding Pole: 1 ~ 18
  • Rotation Speed: 0 ~ 1,500RPM
  • Auto Acts: Auto Converting, exchanging, Winding, Pole Changing, Coil Hooking, Coil Cutting, Completing
  • Converting Direction: Clockwise/counterclockwise set
  • Control System: CNC Control, Computer, Floppy Disk Driver, Keyboard, Printer, 9.4" LCD Chinese Screen
  • Air Pressure: 4 ~ 5 KG/cm^2
  • Motor: 2K AC Servo Motor x 1, 750K AC Servo Motor x 1, 400K AC Servo Motor x 2
  • Power Supply: AC 220V 1Dia 50/60Hz
  • Chassis Dimension: 150(W) x 96(L) x 160(H)CM
  • Weight: 600KG
  • Packing Weight: 800KG
  • Packing Dimension: 180(W) x 130(L) x 190(H)CM
