【Product Features】
◎ Elegant Style & Shape.
◎ LCD Monitor, Easy to Operate,Water Oil proof.
◎ ABS Propellers
◎ Motor Protect System of Over-relay Temperature.
◎ High Quality
◎ Easy to install , Easy to Move, Easy to Maintain
◎ Suit for Plastic Injection plant. Machinery Factory. Steel & Iron Plant, CNC Factory. Food Processed plant. Textile Factory …..etc

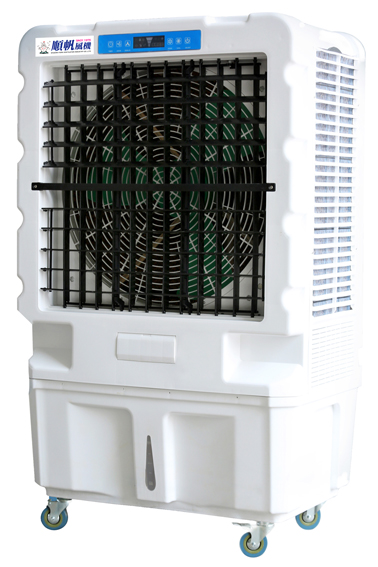

| Item No. | ICF-1 | ICF-2 | ICE-2 | ICF-5 |
| Blade Size | 30" | 24" | 24" | 16" |
| Speed | 3 | 3 | 3 | 3 |
| Voltage | 110/220V | 110/220V | 110V | 110V |
| HZ | 50/60 | 50/60 | 50/60 | 50/60 |
| Motor Power | 820W | 585W | 660W | 250W |
| CMH | 18000/M³ | 12000/M³ | 13000/M³ | 5000/M³ |
| Water(L) | 96 | 70 | 50 | 55 |
| dB(A) | 58/64/68 | 54/58/63 | 53/58/63 | 56/60/65 |
| KGS | 63 | 43 | 38 | 22 |
| Size(mm) | 1120*700*1650 | 930*590*1440 | 800*550*1370 | 680*425*1240 |
Main Products
Exhausting & Drawing Fans-Household (Home, House), Wall Mounted Fans, Movable Guiding Relay Fans, Negative Pressure Exhaust Fans, Industrial Fans-Upright (Stand, Vertical), Industrial Cooling Fan, Industrial Ceiling Fan, High & Low Pressure Blowers-Blowers Flows, Axial Flow Blowers, Multi Wing (Mult
