SQ-48

SQ-48

Click here for details.

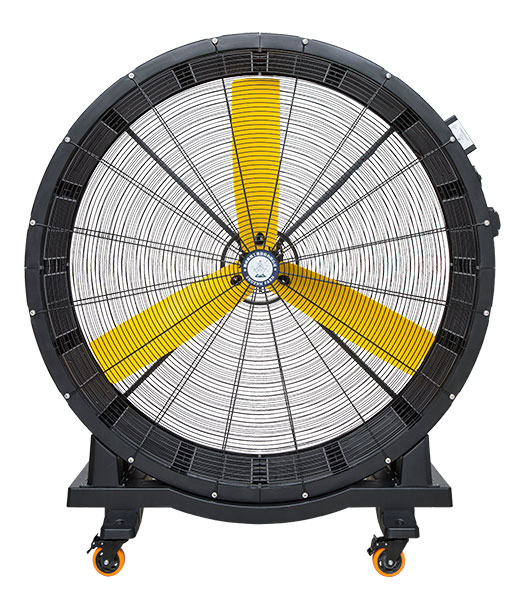

portable industrial fan

Product ID: SQ-48

Send Inquiry



【Product Features】

◎ Large diameter fan blade 1.25 meters.

◎ Silent and power-saving, energy-saving and environmentally friendly.

◎ Air circulation and gentle wind.

◎ The furthest air supply distance can reach 40-45 meters.

◎ Special fan blade design, large air volume and long air supply.

◎ Four-wheel movable tripod, easy to move; adjustable angle, more convenient to use.

[Permanent magnet variable frequency motor]

◎ Permanent magnet variable frequency motor - energy-saving, environmentally friendly, can save 30~50% of electricity.

◎ High efficiency/low performance.

◎ Comes with current/voltage overload protection switch.

◎ Short circuit overload protection switch.

【Precautions】

◎ The volume data is for reference only. The actual decibel value will vary depending on the installation method and usage environment.

[Applicable environment]

◎ Manufacturing industry: textiles, machinery, ceramics, chemicals, hardware, leather, CNC lathes, precision instruments, etc.

◎ Processing industry: gold plating, electronics, shoemaking, printing, rubber, clothing, food packaging, etc.

◎ Other industries: gyms, golf courses, warehousing, schools, hospitals, gymnasiums, exhibition halls, basketball courts, restaurants, markets, baseball fields, stores, greenhouses, car repair shops, motorcycle shops.



Model SQ-48
Motor permanent magnet variable frequency motor
Airflow(CMM) 38000m³/h
Voltage(V) 110V/60HZ
Power(W )       600W
Maximum speed 440 rpm/min
Blade diameter 1.25M(48inches)
Air supply distance 35-40M
Dimensions(mm) 1510*790*1680mm
N.W. (KG) 60KG
Applicable area 400-500㎡
