Scart Connector/Scart Socket (Duel Type With Metal Shield)

Click here for details.

Duel Type With Metal Shield

Product ID:

Send Inquiry

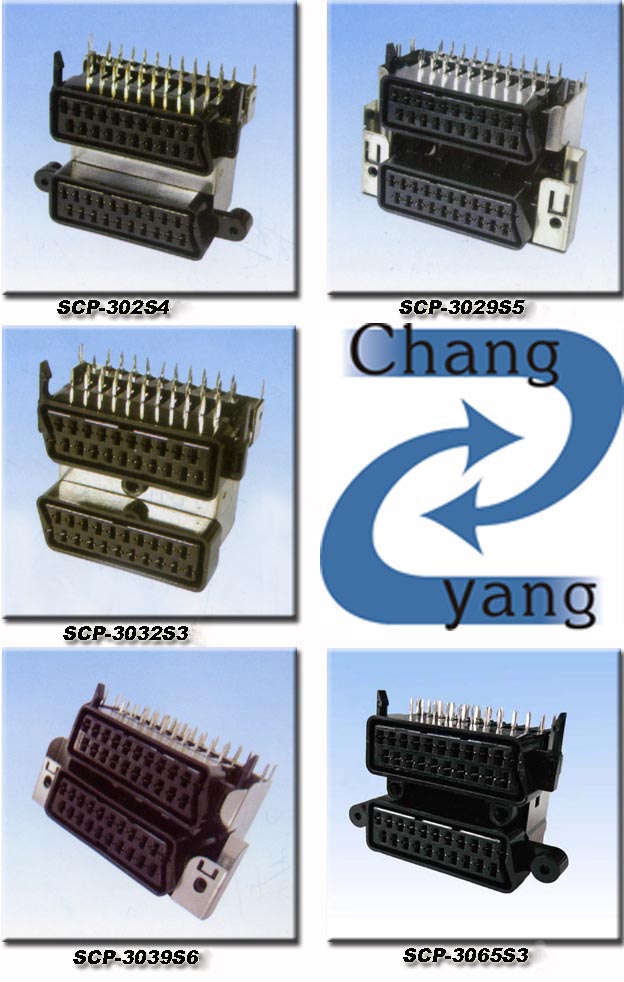

Scart Socket Duel Type With Metal Shield (SCP-3029S4/ SCP-3029S5/ SCP-3032S3/ SCP-3039S6)

"SCART" socket refers to an industry standard 42 pin socket found on most

TV's, VCR's and other consumer video equipment. Although initiated in Europe, the standard is now widely used by many Japanese and North American manufacturers.

A SCART socket is a 42 pin connector fitted on many European TV, VCR, and Satellite products, it provides stereo sound and video signals both in and out of the item of equipment, it can also provide RGB signals, which can be useful for connecting Video Game Consoles or Digital TV Set Top Boxes.

Chang yang has produced Scart Connectors for more than 20 years, and we also are the best manufacture in this field. We have professional know-how and techniques for production in order to provide high quality products for our customers. In 2008, we purchased automatic production machines for single and duel scart sockets and it will improve our quality for products and efficiency when producing.

Chang yang Electronics Company Ltd. is a good manufacturer who has professional know-how and experiences for Scart sockets. Chang Yang provides high quality and compatible Scart sockets for our customers and has established good business relationships with many well-known companies for many years. We, Chang Yang, provide not only high quality Scart leads (scart cables & scart connectors) but HDMI calbes/ USB 2.0 cables / Audio and Video cables for our customers in whole world. We believe our over 20 year experiences shall meet requests from our customers and provide best services to meet their demands.

We, Chang Yang Electronics Company Ltd., have well-trained staffs who have professional know-how to control our quality and deal with all requests from customers. In the future, we believe Chang Yang will be your good partner.

Specifications
  • Temperature: -25°C TO 70°C
  • Relative Humidity: Subject samples to temperature of 40±2°C and a relative humidity of 90?95% for a period of 96 hours.
  • Rated Load: DC 50V 0.2A
  • Contact Resistance: 35mΩ or less
  • Insulation Resistance: 1000MΩ MIN.
  • Withstand Voltage: 20N nin/50N max
  • ENVIRONMENT: 10% TO 90% RH
Features
  • 42 Pins Duel scart socket supplied in different sizes and terminals for electronic and electrical products
  • Allows high quality connection of three scart inputs to one scart socket
  • Right or Left angle with thick round screw or lugs
  • Ø2.5 mm, tin plated terminal
Certificate
  • RoHS
  • CE
  • FCC
  • HDMI ATC CERTIFICATE
