Specifications
- Mechanical Life: 30,000 make-and-break cycles at full load.
- Contact Resistance:
- 10mΩ max. initial @2-4 VDC.
- 100mA for both silver and gold, plated contacts.
- Insulation Resistance: 1,000M Ω min.
- Dielectric Strength: 1,000V RMS @sea level.
- Operating Temperature: -30°C to 85°C.
- Materials
- Case: Glass filled nylon 66, flame retardant, heat stabilized (UL94 V-0).
- Actuator: Brass, Chrome plated with internal, O-ring seal standard.
- Switch Support: Brass or Steel, Tin plated.
- Switch Support Retainer: Stainless steel.
- Contacts / Terminals: Copper alloy, with silver or gold plated.

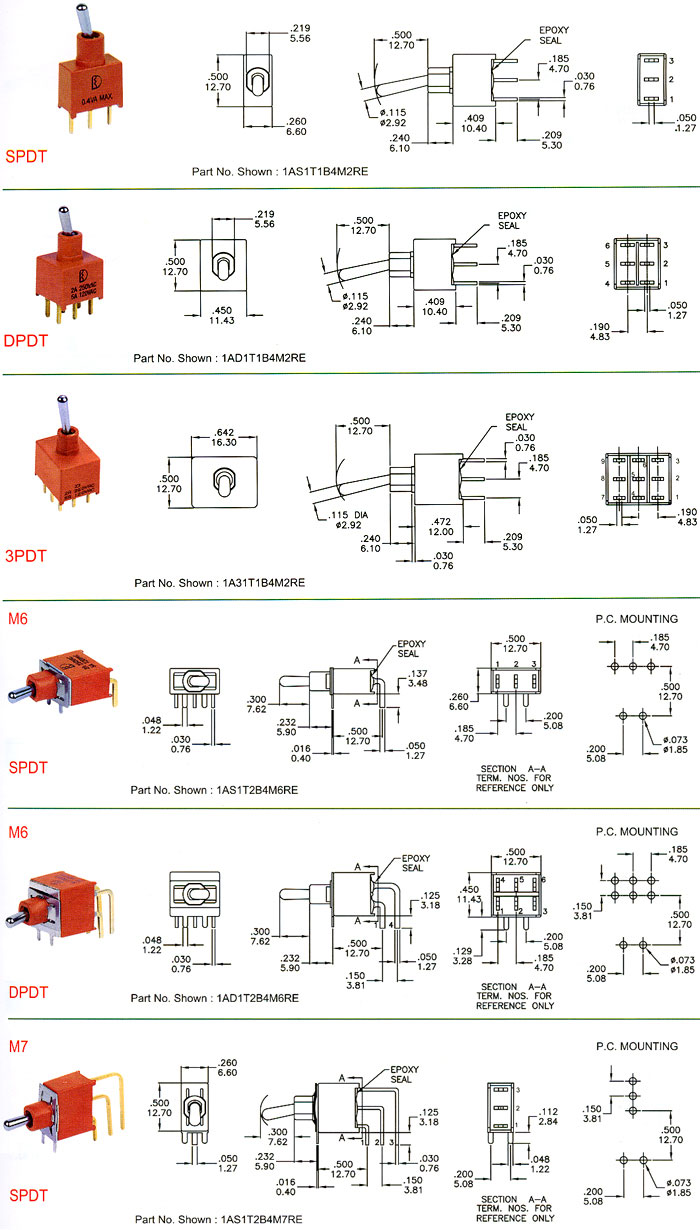

- Sealed Miniature Toggle switches. Sealed against the effects of temporary immersion in water and contaminants.
