Specifications
- Mechanical Life: 30,000 make-and-break cycles at full load.
- Contact Resistance:
- 20mΩ max. initial @2-4 VDC.
- 100mA for both silver and gold, plated contacts.
- Insulation Resistance: 1,000M Ω min.
- Dielectric Strength: 1,000V RMS @sea level.
- Operating Temperature: -30°C to 85°C.
- Materials
- Case: Diallyl phthalate (DAP) (UL94 V-0).
- Housing: Brass, Tin plated.
- Actuator: Nylon, Black.
- Contact: Silver or Gold plated.
- Terminal Seal: Copper alloy, with silver and gold plated.

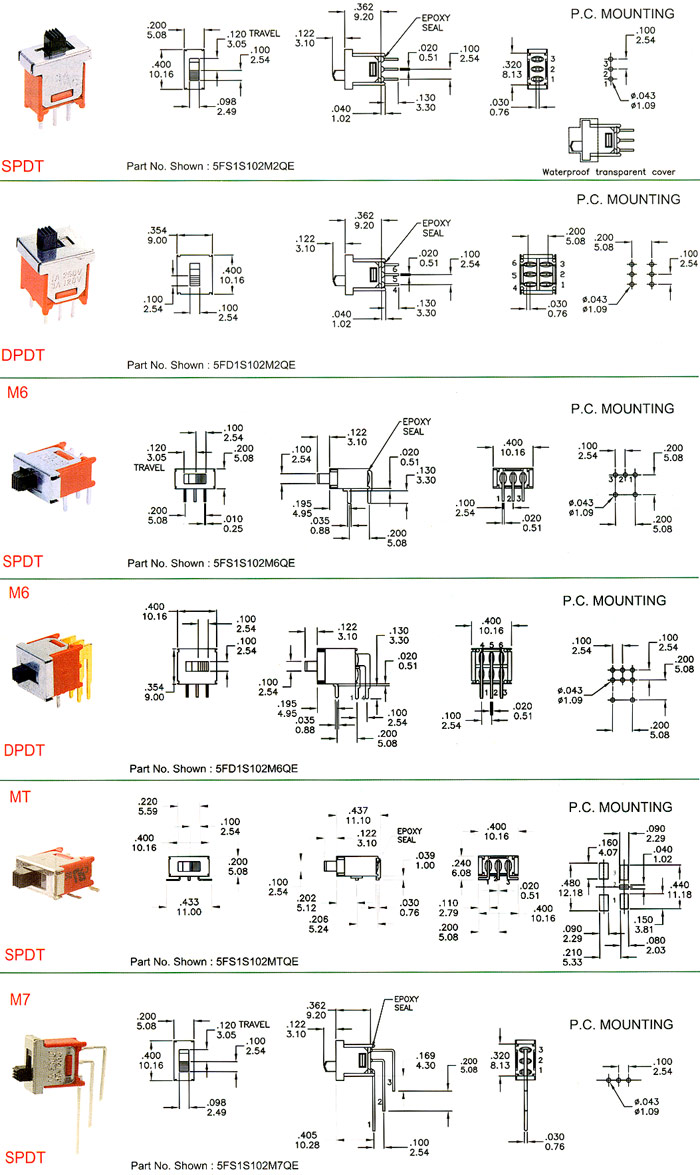

- Sub-Miniature Slide switches with current rating-3A@120VAC, 1A@250VAC or 28VDC, vairety of poles and termination options.
