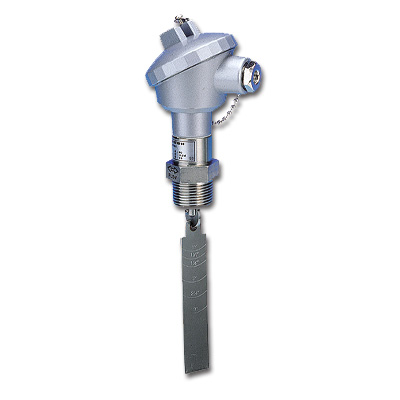

Paddle Type Flow Switch

Product ID: SF

Send Inquiry
Flow Switch utilizes the force of liquid flow to propel its paddle in order to detect the incoming flow or moving of the existing liquid in pipe. In condition of static liquid or no liquid, the spring is in expanding and press the magnet downward vertically. Reed switch contact is N.O.
As flow occurs and the paddle is thrust and raised at an upward angle of 20°~30° (or more), the eccentric of paddle will push the magnet upward to actuate the reed switch which is thus in a close circuit. The length of paddle can be adjusted with the diameter of a pipe.

Product Introduction

  • Wetted Part: SUS304, TEFLON
  • Operating Temp: -30°C~150°C
  • Contact Rating: 30W / 200 VDC
  • Mounting Screw : 1" PT
  • Enclosure Protection:
    • SF1800: IP-65
    • SF1710: EExd II C T6
  • Suitable Pipe: 1"~3"
  • Operating Pressure: 355 PSI
  • Detection: Reversible
