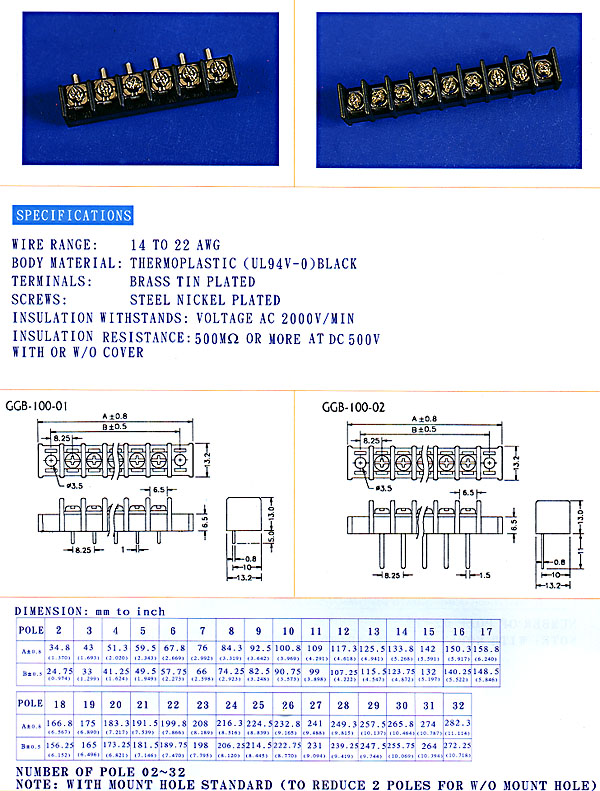

Specifications
- GGB-100 Pitch: 8.25m^2 (one stack)
- GGB-110 Pitch: 8.25m^2 (two stacks)
- GGB-210 Pitch: 8.25m^2 (one stack)
- Rating: 15A, 300V
- Wire range: 14~22AWG
- Body material: thermoplastic (UL94V-0) black
- Terminals: brass tin-plated
- Screws: steel nickel plated
- Insulation withstands: voltage AC2000V/min
- Insulation resistance: 500M(Ohm) or more at DC500V
- Number of poles: 2~26pin
Features
- GGB-100 With or With out cover.
- With or With out mount hole.
- UL and CSA approved.
