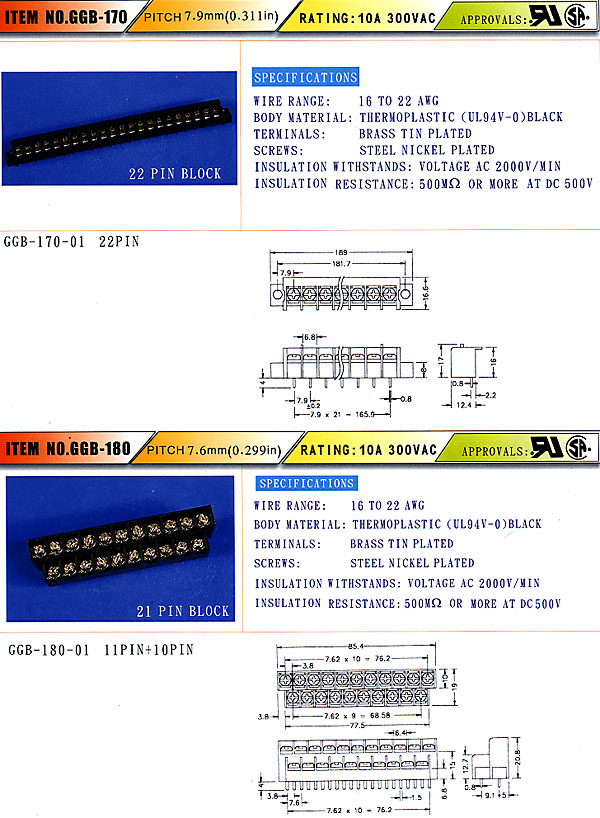

Specifications
- GGB-180 Pitch: 7.6m^2 (21 PIN)
- GGB-200 Pitch: 7.6m^2 (28 PIN)
- GGB-160 Pitch: 7.9m^2 (9 PIN)
- GGB-170 Pitch: 7.9m^2 (22 PIN)
- GGB-190 Pitch: 7.9m^2 (27 PIN)
- Rating: 10A, 300V
- Wire range: 16~22AWG
- Body material: thermoplastic (UL94V-0) black
- Terminals: brass tin-plated
- Screws: steel nickel plated
- Insulation withstands: voltage AC2000V/min
- Insulation resistance: 500M(Ohm) or more at DC500V
Features
.UL and CSA approved.Main Products
