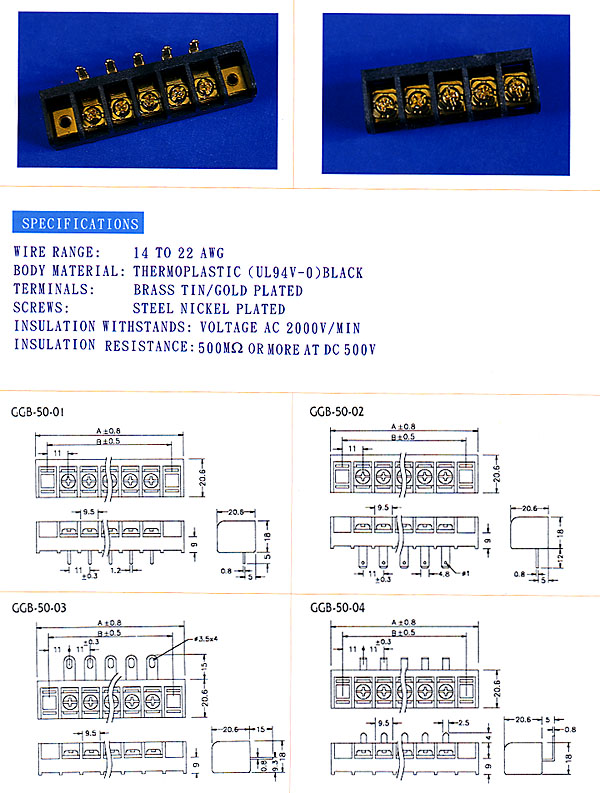

Specifications
- GGB-50 Pitch: 11m^2 (15A, 300V)
- GGB-80 Pitch: 8.25m^2 (15A, 300V)
- GGB-90 Pitch: 9.5m^2 (15A, 300V)
- GGB-140 Pitch: 6.3m^2 (10A, 300V)
- Rating: 10A, 15A 300V
- Wire range: 14~22AWG
- Body material: thermoplastic (UL94V-0) black
- Terminals: brass tin-plated
- Insulation withstands: voltage AC2000V/min
- Insulation resistance: 500M(Ohm) or more at DC500V
- Number of poles: 2~32PIN
Features
- With or With out mount hole.
- UL and CSA approved.
Main Products
PCB Terminal Blocks, Mini Terminal Blocks, Two Rows PCB Terminal Blocks, Fixed Terminal Blocks, Din Rail Type Terminal Blocks, Single Bakelite Base, Fuse Holders, European Type Terminal Blocks, Bus Bar Insulator, Copper Contact
