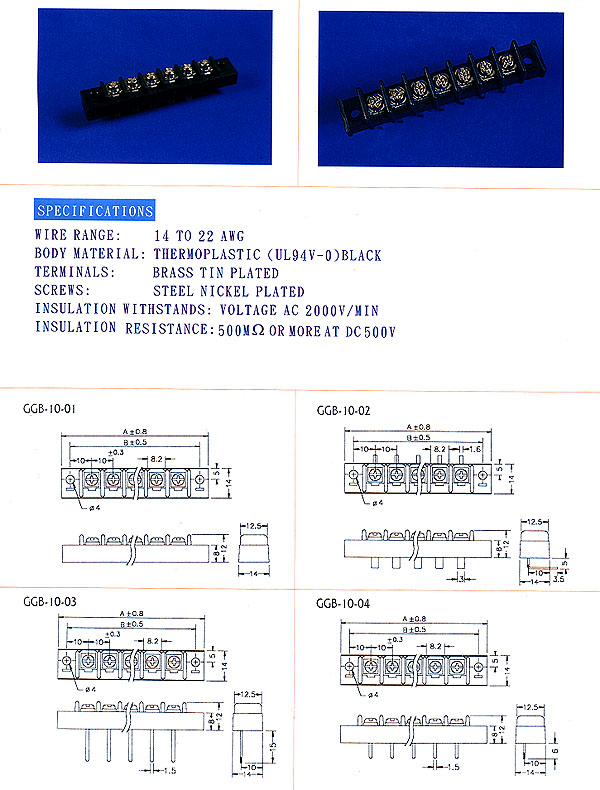

Specifications
- GGB-10 / GGB-40 Pitch: 10m^2 (15A 300V)
- GGB-30 Pitch: 11m^2 (15A 300V)
- GGB-20 / GGB-130 / GGB-150 Pitch: 9.5m^2 (15A 300V)
- GGB-60 Pitch: 6.35m^2 (10A 300V)
- GGB-70 Pitch: 7.62m^2 (10A 300V)
- Rating: 10A / 15A 300V
- Wire range: 14~22AWG
- Body material: thermoplastic (UL94V-0) black
- Terminals: brass tin-plated
- Screws: steel nickel plated
- Insulation withstands: voltage AC2000V/min
- Insulation resistance: 500M(Ohm) or more at DC500V
- Number of poles: 2~28PIN
Features
- With or w/o mount hole.
- GGB-20, GGB-30, GGB-40, GGB-70 with or w/o cover.
- UL and CSA approved.
