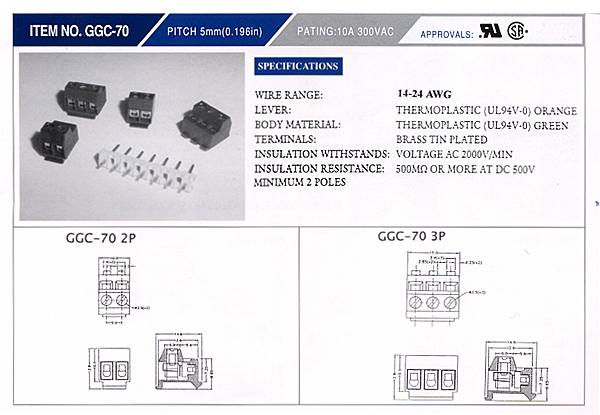

PITCH 5mm(0.196in)
RATING 10A 300VAC
RATING 10A 300VAC
Specifications
- Wire: 14-24 AWG
- Lever: Thermoplastic (UL94V-0) Orange
- Body Material: Thermoplastic (UL94V-0) Green
- Terminals: Brass tin plated
- Insulation Withstands: Voltage AC 2000V/min
- Insulation Resistance: 500M(ohm) or more AT DC 500V
- Minimum 2 poles
