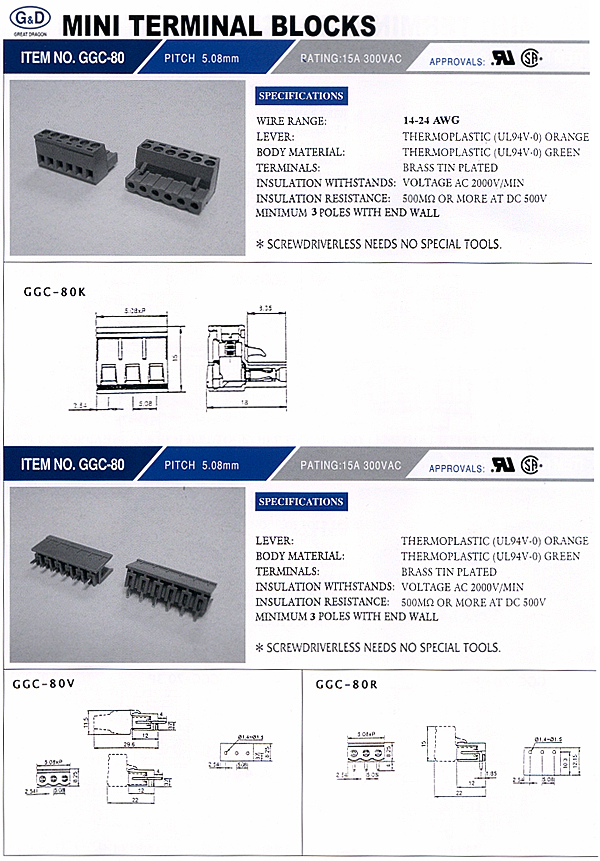

Mini Terminal Blocks

Click here for details.

Mini Terminal Blocks

Product ID: GGC-80

Send Inquiry

GGC-80K
PITCH 5mm
RATING 15A 300VAC
GGC-80V & GGC-80R
PITCH 5mm
RATING 15A 300VAC

Specifications

GGC-80K

Wire: 14-24 AWG
Lever: Thermoplastic (UL94V-0) Orange
Body Material: Thermoplastic (UL94V-0) Green
Terminals: Brass tin plated
Insulation Withstands: Voltage AC 2000V/min
Insulation Resistance: 500M(ohm) or more AT DC 500V
Minimum 3 poles with end wall

GGC-80V & GGC-80R

Lever: Thermoplastic (UL94V-0) Orange
Body Material: Thermoplastic (UL94V-0) Green
Terminals: Brass tin plated
Insulation Withstands: Voltage AC 2000V/min
Insulation Resistance: 500M(ohm) or more AT DC 500V
Minimum 3 poles with end wall

Features

.Screwdriverless needs no special tools
