AUTO DRY FILM LAMINATOR

Product ID: YCL-630A+

Send Inquiry
PANEL SIZE--9”*12” (230*300㎜)~24”*28”(600*700㎜
PANEL THICKNESS--0.1~5㎜
TACKING TEMP.--50±5℃
TACKING TIME--1~2 sec.
EDGE BLANKING TOLERANCE LERANCE--±1㎜
SPEED--1~4m/min
HEATING ROLLER--72φ SILICONE RUBBER, 1.5KW*2
HEATING CONTROL--TEMP. 20~150℃±5℃, PID/SCR CONTROL
HEATING TIME--Abt. 20min
DRY FILM ROLL--CYLINDER FIXING, SCREW KNOB
TENSION CONTROL--TENSION FRAME WIZ CYLINDER PUSH-PULL
FILM GUIDE--VACUUM PANEL in 4 RANGES
FILM CUTTING--WHEEL KNIFE DRIVING WIZ MOTOR AND TIMING BELT
FILM LENGTH CONTROL--DUAL ENCODER
ANTI-STATIC--ANTI-STATIC CONTROLLER AND BARS
FRONT SECTION--TRANSFER ROLLERS WIZ CLUTCH AND BRAKE
BOARD ALIGNMENT--AUTO CENTERING ALIGNMENT (MMI)
REAR SECTION--TRANSFER ROLLERS
CONTROL--PLC WIZ COLOR TOUCH PANEL
OTHERS--AUXILIARY BOARD FEEDING ROLLER
OPTIONS--PREHEATING, FILM LATERAL CUTTING, AUTO LOADER, UNLOADER
POWER--AC 220V/380V/3φ
AIR SOURCE--4~6㎏/㎝²

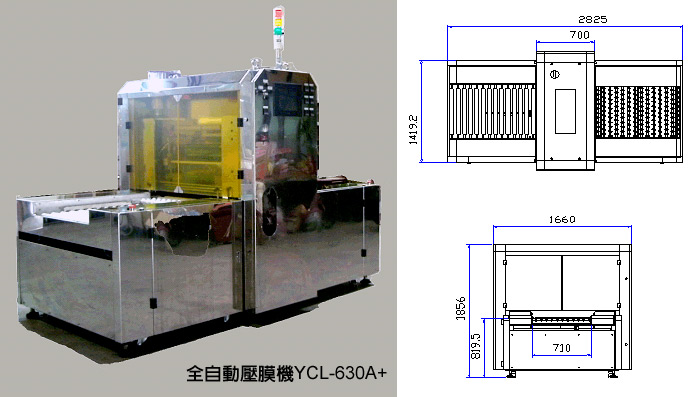

DIMENSION --2825L*1660W*1856H, GW~1800㎏ See. drawing
