Wire Size | Conductor | Conductor | Conductor | Max. Electric Resistance at 20°C | Insulation | Nominal Outside Diameter | Diel. Strength |
---|---|---|---|---|---|---|---|
- | No. of Strands | Diameter of Strand | Outer Diameter | - | Nominal Wall Thickness | - | - |
AWG | - | mm | mm | mΩ/m | mm | mm | ACV/1 min |
24 | 7 | 0.203 | 0.61 | 94.20 | 0.81 | 2.23 | 2,000 |
24 | 11 | 0.160 | 0.61 | 94.20 | 0.81 | 2.23 | 2,000 |
22 | 7 | 0.254 | 0.76 | 59.40 | 0.81 | 2.38 | 2,000 |
22 | 17 | 0.160 | 0.76 | 59.40 | 0.81 | 2.38 | 2,000 |
20 | 7 | 0.320 | 0.96 | 36.70 | 0.81 | 2.58 | 2,000 |
20 | 21 | 0.180 | 0.96 | 36.70 | 0.81 | 2.58 | 2,000 |
18 | 7 | 0.404 | 1.20 | 23.20 | 0.83 | 2.86 | 2,000 |
18 | 34 | 0.180 | 1.20 | 23.20 | 0.83 | 2.86 | 2,000 |
16 | 26 | 0.254 | 1.50 | 14.60 | 0.85 | 3.20 | 2,000 |
14 | 41 | 0.254 | 1.90 | 8.96 | 0.85 | 3.60 | 2,000 |
12 | 65 | 0.254 | 2.37 | 5.64 | 0.85 | 4.07 | 2,000 |
Features
- Application :
- In compliance with UL Standard. Crosslinked PE Insulated for Internal Wiring of Electronic Equipment Primary Circuit, providing excellent heat resistance, cold resistance, chemical resistance, solvent resistance , and abrasion resistance.
- Materials/Standard :

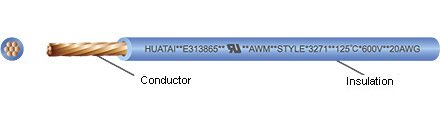

- Conductor : Soft-annealed Solid Stranded or Bare or Silver-plated or Tinned copper.
- Insulation : Crosslinked PE (Polyethylene) insulated. In accordance with UL 758 and RoHS Directive.
- Temperature rate :
- -40°C ~ +125°C, 600V AC and 700V DC
