Explosion Proof Position Transmitter

Product ID: ALS400M2F

Send Inquiry
ALS series explosion proof position transmitter including ALS400, ALS500 and ALS600 series were designed and manufactured by AFL Group through advance state-of-the-art engineering technology and its special patent technology which have the explosion proof position transmitter to be solid, beautiful and with high-level quality. All of the ALS series explosion proof position transmitter fully meet ISO5211, Namur and IP67 standards. The mechanical switch, proximity sensor, magnet sensor, ASi sensor and DeviceNet sensor are all available in ALS series explosion proof position transmitter.

Based on 94/9/EC of 23 March, EN13980, EN60079-0:2006 and EN60079-1:2004 production standards, ALS400/500/600 series flame proof limit switch box is certified for use in hazardous areas (Class I, Div. 1&2, Group A, B, C and D, Ex d IIB T6, Ex d IIC T6)). Because of the stainless steel (304/316/316L) enclosure, ALS600 series limit switch box / explosion proof position transmitter can offer excellent resistance to most corrosive chemicals as well as hazardous industrial atmospheres.

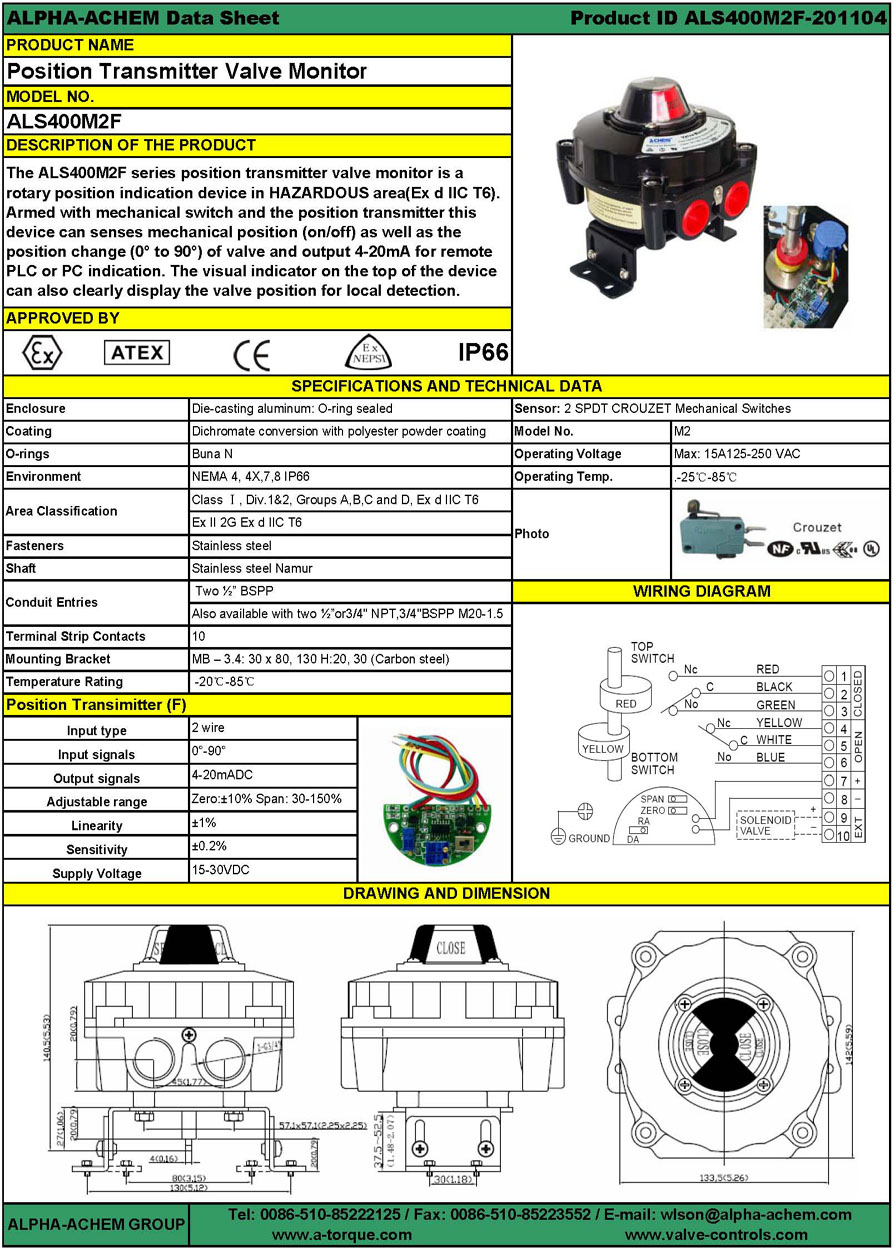

MODEL NO.ALS400M2F
PRODUCT LINE ACHEM ALS Series Explosion Proof Limit Switch Box
Enclosure Die-casting aluminum: O-ring sealed
Coating Dichromate conversion with polyester powder coating
O-rings Buna N
Environment NEMA 4,4X,7,8 IP66
Area Classification Class Ⅰ, Div.1&2, Groups A,B,C and D, Ex d IIC T6
  Ex II 2G Ex d IIC T6
Fasteners Stainless steel
Shaft Stainless steel Namur
Conduit Entries Two ¾” NPT
  Also available with two ½” or ¾” BSPP,½” NPT, M20-1.5
Sensor Standard M2: 2 SPDT CROUZET Mechanical Switches, 15A125-250 VAC
Position Transmitter F: 4-20mA transmitter (0-90°)
Terminal Strip Contacts 8~14
Mounting Bracket MB – 3.3: 30 x 80, 130 H:20, 30 (Carbon steel)
Temperature Rating -20℃-85℃
