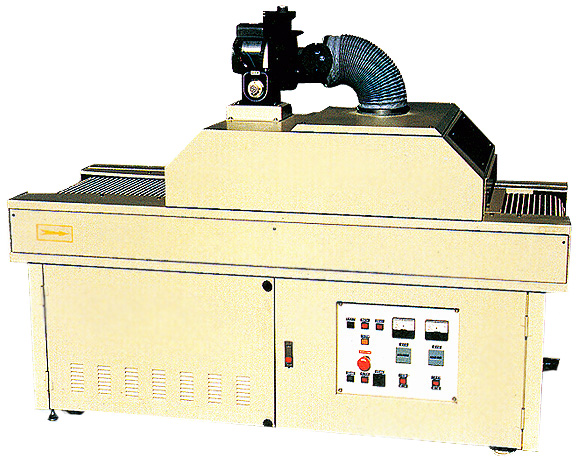

Product ID: UVC-322Send Inquiry
- Suitable for stencil printing, offset printing, sticker brand, metal, glass, paper, Acrylic board, PC board, PC, PVC, ABS, Ps, etc.
- Power 1 60Hz AC220V : 10 KVA
- Lamp Kw/PCs : 3.2 / 2
- Effective Width : 350 (mm)
- Belt Width : 400 (mm)
- Belt High : 770 + 50 (mm)
- Converying Speed : 4 ~ 20 M/min
- Dimension (L x W x H) : 1756 x 750 x 1,350 (mm)
- By using high UV output metal halide lamp, workpiece could be instant dried.
- This unit employs automatically switch off power, protect the over load motor and over high temperature, enemy stops and control fuse.
- The dry distance is adjustable, just depends on customers' require.
- With special design cooling cold filter, the system can keep heat sensitive materials, materials, such as PVC film, PP film and PET film from temp effect in their curing process.
