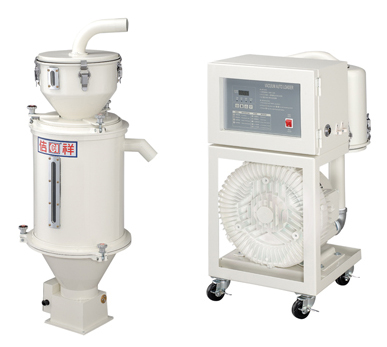

Powder Suction Machine

Product ID: 5-6

Send Inquiry

Use three phase, quiet, powerful induction motor and equip with an alarm and auto fan-reverse function .The main controller and suction hopper are split. Easy for operation and maintenance, convenient and safe. We provide models from 3HP to 10HP model .All series provide microprocessor control panel.



Remark

We reserve the right to change specifications without prior notice.

Model

Motor

Source

Conveying Capacity

Conveying Height

Size
(L*W*H)(mm)

Weight

Type

Specification

Main

Suction Hopper

CHVP-3

Induction

3HP

3 PHASE

220-480V

800kg/hr.

8M

520*420*880

620*420*880
(L)

56 kg

61 kg
(L )

20 kg

CHVP-5

Induction

5HP

3 PHASE

220-480V

1000kg/hr.

10M

520*420*880

620*420*880
(L )

62 kg

67 kg
(L )

20 kg


CHV460# series can be made up to 10HP on customers' demand.
Features
  • Equip with an alarm and auto fan-reverse function , easy to clean filter screen and feed tube dust .
  • Motor protective device.
  • Alarm for shortage of material.
  • Stainless steel material suction hopper.
  • Main controller is fitted with an air cleaner.
Certificate
  • CE
