Conventional Horizontal Boring & Milling Machine

Conventional Horizontal Boring & Milling Machine

Click here for details.

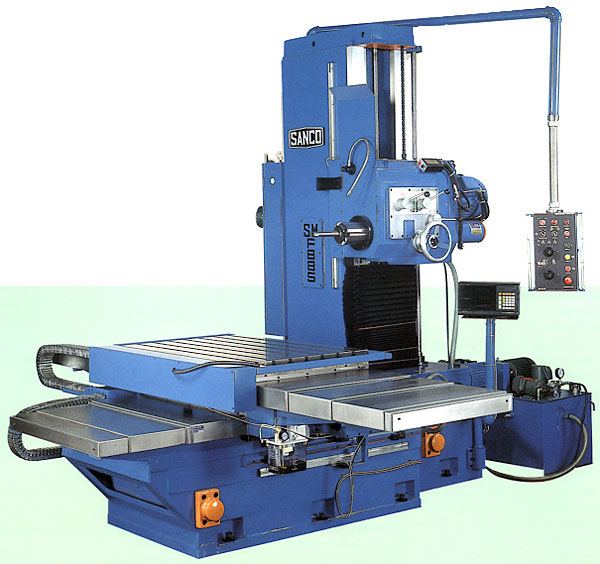

Conventional Horizontal Boring & Milling Machine

Product ID: SM-FB85, SM-FB85N

Send Inquiry
High Accuracy:
This machine adopts high class FC30 cast iron & high intensity of alloy steel parts, precise gear, and "SANCO" particular manufacturing technology to achieve the best standard in accuracy, intensity, and high progressing application.
High Operation:
FB-85N machine X.Y.Z.-axis adopts oil pressure clamping system developed by our company, matching good electricity operation, locking any one axis or three axises at a very short time, to achieve the effects of fastness, accuracy, labor-saving while progressing; then the other good oil pressure providing system matches this locking system to function more perfection.
Specifications
  • Travels: 1,200 x 1,000 x 800 mm
  • Max. Loading: 1,200 kgs
  • Spindle Taper: NT#50
  • Main Motor: 5.5KW x 4P (6P)
  • Floor Space Requirement: 3,200 x 3,600 mm
Features
  • Index table 600 x 600 mm.
  • Pulse scale & display.
  • Air clamping device.
  • Cycle lubrication pump system.
  • Hydraulic pump (only for SM-FB85N).
