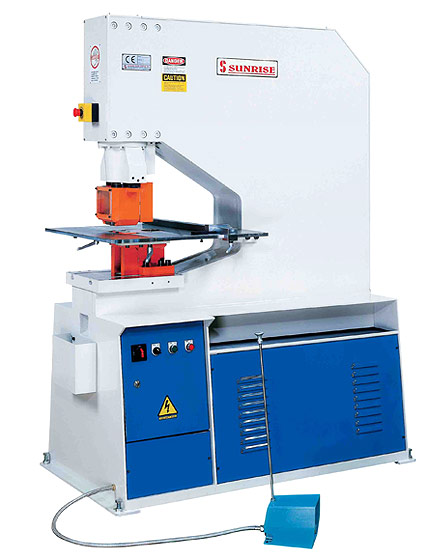

PM-55XT 760mm Throat Punching Machine

PM-55XT 760mm Throat Punching Machine

Click here for details.

Punching Machine

Product ID: PM-55XT (XT models with 760mm deep throat)

Send Inquiry
Special designed hydraulic cylinder enables the machine to retract faster, also makes our cylinder slimmer, which brings a better appearance to the machine.
Ranging from 35 to 200 tons of punching capacities, combined with different throat depths to choose, provides a complete range of models to meet the customer's different requirements.
All optional tooling used on the punching station of S / SD ironworkers can also be used on the PM models, turning the punching machine into an universal machine.
Model PM-35XT PM-55XT PM-80XT PM-120XT PM-160XT PM-200XT
Punching
Punching Pressure 35 Ton 55 Ton 80 Ton 120 Ton 160 Ton 200 Ton
Maximum Capacity Ø18 x 14 Ø22 x 18 Ø25 x 23 Ø32 x 27 Ø36 x 32 Ø41 x 35
(Dia. x Thickness) Ø50 x 5 Ø50 x 8 Ø50 x 12 Ø50 x 17 Ø50 x 23 Ø50 x 29
Channel Flange Punching (H) 180 180 180 180 180 180
Throat Depth T: 760 760 760 760 760 760
Max. Stroke Length 100 100 100 100 100 100
Cycles / Min. (20mm Stroke) 41 28 28 26 27 28
Table Size (W x D) XT: 700 x 950 700 x 950 700 x 950 700 x 950 700 x 950 700 x 950
Working Height Up to Die 1,050 1,050 1,050 1,050 1,050 1,050
Optional Tooling
Largest Hole* Ø160 x 2 Ø160 x 3 Ø160 x 4 Ø200 x 6 Ø200 x 8 Ø200 x 10
Single Vee Press Brake (W x T)* 250 x 12 250 x 15 250 x 15 250 x 20 250 x 20 250 x 20
Multi - Vee Press Brake (W x T)* 500 x 3 500 x 5 500 x 5 700 x 5 700 x 5 700 x 5
Angle Bending* 102 x 6 102 x 9 102 x 13 102 x 13 102 x 13 102 x 13
Rectangular Notcher (W x D x T)* 63.5 x 90 x 6 63.5 x 90 x 8 63.5 x 90 x 10 63.5 x 90 x 13 63.5 x 90 x 13 63.5 x 90 x 13
Vee Notcher (Side x Side x T)* 145 x 145 x 5 145 x 145 x 6 145 x 145 x 10 145 x 145 x 12 145 x 145 x 13 145 x 145 x 13
Pipe Notcher (Max Dia.)* Ø114 Ø114 Ø114 Ø114 Ø114 Ø114
Flat Bar Shearing* 175 x 5 175 x 7 175 x 10 175 x 14 175 x 16 175 x 16
Angle Shearing* 75 x 75 x 6 100 x 100 x 7 100 x 100 x 10 100 x 100 x 13 100 x 100 x 13 100 x 100 x 13
Round Bar Shearing* Ø32 Ø32 Ø32 Ø32 Ø32 Ø32
Square Bar Shearing* 28 x 28 32 x 32 32 x 32 32 x 32 32 x 32 32 x 32
Channel Shearing* 102 x 51 102 x 51 102 x 51 102 x 51 102 x 51 102 x 51
Other
Electric Power 5 HP 5 HP 7.5 HP 10 HP 15 HP 20 HP
Net Weight (Apr.) XT: 1,840 kg 2,200 kg 2,845 kg 3,600 kg 4,660 kg 5,600 kg
Gross Weight (Apr.) XT: 2,000 kg 2,420 kg 3,060 kg 3,860 kg 5,000 kg 5,960 kg
Machine Dimension (Apr.) (L x W x H) XT: 1,820 x 820 x 1,815 1,920 x 820 x 1,960 2,045 x 865 x 1,980 2,170 x 970 x 2,035 2,370 x 1,040 x 2,135 2,475 x 1,265 x 2,175
Packing Dimension (Apr.) (L x W x H) XT: 2,140 x 970 x 2,055 2,240 x 970 x 2,200 2,365 x 1015 x 2,220 2,490 x 1,120 x 2,275 2,690 x 1,190 x 2,375 2,795 x 1,415 x 2,415
Certificate
  • CE
