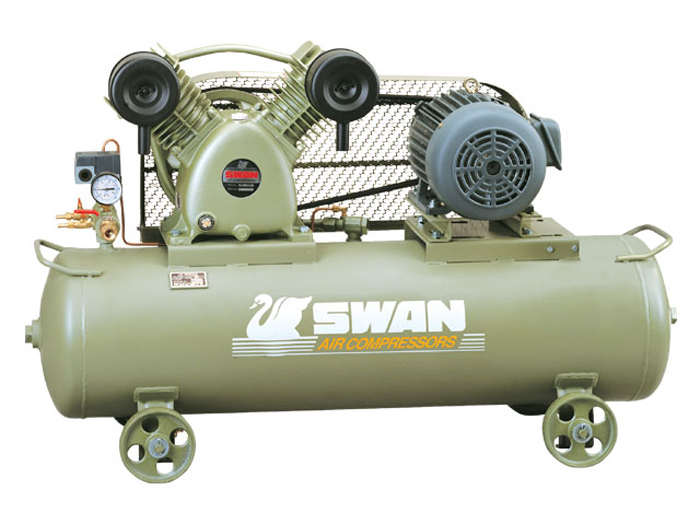

Air Cooled Portable Type

Product ID: SVP(U)-203

Send Inquiry

S Series Feature:
Effective Cooling fans design to highly reduce the compression temperature.
Durable cast iron crankshaft and pump - excellent wear-resistance.
User-friendly - easy operation and maintenance.
Various options for different application.

Two different type:
(1) ”P” type (pressure switch system )
The automatic pressure switch will stop and start the compressor according to air demand. It is normally recommended for intermittent operation and smaller compressor units.
(2) ”U” type (automatic unloader system)
The automatic unloading system allows for the control of loaded and unloaded compressor states through a range of pre-set pressure values. This system is recommended where the duty cycle exceeds 50%, and for all larger compressors units.

Model Motor (HP) W.P (kg/cm²) Tank Capacity (l) FAD (l/min) Dimension (mm) L x W x H Weight (kg)
SVP(U)-203 3 8 106 355 1250x450x840 110
  • ISO-9001 Certificate
  • CE Certificate

Main Products

Screw type compressor, Piston type compressor, Air cooled type compressor Water cooled type compressor, Oil-less type compressor Oil-free type compressor, Dental type compressor Booster
