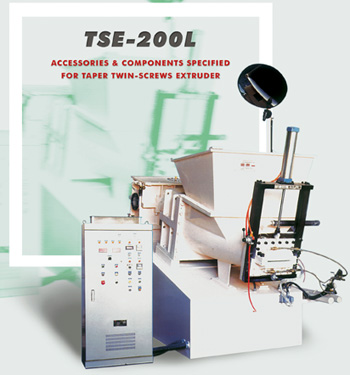

TSE-200L Rubber Extruder

TSE-200L Rubber Extruder

Click here for details.

Rubber Sheeting Machine - Accessories & Components Specifed For Taper Twin- Screws Extruder

Product ID: TSE-200L

Send Inquiry
Rubber Sheeting Machine - TSE SERIES
1. Abandoning the complicate roller feeding process, it saves labor cost and time.
2. Easy to change material color without any residue.
3. Adjustable speed to co-operate with the production rate.
4. Simple strip or sheet discharge device could supply material for various types of rubber injection molding machine.
5. Special for rubber celotex manufacturing.
6. High extruding amount and low power consumption
MODEL TSE-20L TSE-35-75L TSE-110L TSE-200L TSE-300L
Extruder Motor 20HP 40HP 50HP 75HP 100HP
Extruding Capacity / hour 250L 700L 1250L 2000L 2500L
Suitable for any kind of Blnder 10L - 20L 25L - 55L 75L - 110L 150L - 200L 300L
R.P.M. 2-20 2-20 2-20 2-20 2-20
Cooler Pump 1/2HP 1HP 2HP 3HP 3HP
Hopper Dimension (m/m) 500 750 800 950 1050
Control Panel 1 1 1 1 1
Machine Dimension (m/m) 1200 x 1350 x 1600 1650 x 1700 x 2200 1950 x 2000 x 2400 2200 x 2100 x 2600 3000 x 2750 x 3500
