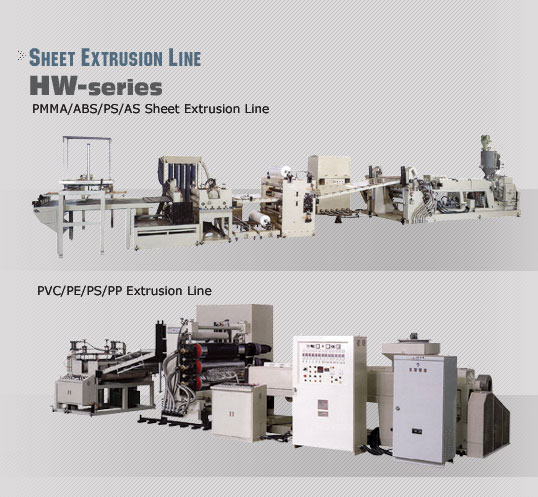

Extrusion machine

Product ID:

Send Inquiry
Excellent Impact Strength Outstanding Temperature Range.
High Clarity and Gloss
Flame Resistance and Retardance
Low Conductivity
Non-toxicity
Specifications
  • HWPC120T1400
    • FUNCTION OF EQUIPMENTS ------
    • Product:PC/PMMA Sheet
    • Thickness:1.6~6.0m/m
    • Length:free from any chosen length by customer
    • Max. Width:1300m/m
    • Max. output:220kg/hr.(PC),250kg/hr.(PMMA)
    • EXTRUDER ------
    • Type:Vented downward type extruder
    • L/D Ratio:32/1
    • Screw Material:SCM-440 alloysteel with nitrided, hard chromed treatments.
    • Barrel Material:AISI 4140 imported from USA particularly for processing PC.
    • Barrel Temperature Control: 6 zones, 49.5kw
    • Option:Auto Loader
    • MAIN DRIVING SYSTEM ------
    • Motor:200HP DC Drive
    • Motor Revolution:90~1800 r.p.m.
    • SCREEN CHANGER ------
    • Type:Sliding plate type hydraulic system
    • Hydraulic Pump:5HP x 1 set
    • T-DIE ------
    • Type:Imported flat type sheeting extrusion die
    • Die Width:1400m/m
    • Die Lip:2.0m/m or 4.0m/m or 6.0m/m
    • Die Temperature Control: 7 zones, 23kw
    • GEAR PUMP ------
    • Type:Imported grade
    • Volume:92.6C.C.
    • Drive:20 HP DC motor
    • Pressure transducer, indicator and display meter W/Feeding-Back device x 1 set
    • ROLL STACK ------
    • Type:Imported grade mirror finishing roller in 45 degree slant alignment.
    • Roller Dimension:425m/m x 1600m/m x 3 pcs.
    • Drive:5HP DC motor + 1/60 reducer
    • Hydraulic Pump:5HP
    • Temperature Control of Heating Tank:3 sets
    • By means of individual thermal display & control operative device
    • ROLLER PASSAGE ------
    • Type:By means of steel finishing roller
    • Bridge Length:6000m/m x 1600m/m(w)
    • Roller Dimension:160m/m x 1550m/m(w)
    • Drive:1HP DC + 1/30 reducer
    • COATING UNIT ------
    • Type:double sides film protective coating
    • Heater Capacity:6kw
    • HAUL-OFF & EDGE TRIMMING UNIT ------
    • Roller:160m/m x 1600m/m(w)
    • Drive:5HP DC + 1/60 reducer
    • Trimming:Pneumatic control saw x 2 pcs.
    • Dust Collector:Vacuuming motor 10 Hp x 1 set(dust collecting tank included)
    • CUTTING UNIT ------
    • Type:Movable stainless steel saw x 1 set
    • Sliding Rail:Imported grade, pneumatic control driven by 2HP AC motor x 1 set
    • CONVEYING SYSTEM ------
    • Type:Rubber belt conveyor stack x 1 set
    • Drive:1HP DC
    • Vacuum Sucker:5HP x 1 set
    • Digital Counter:1 set with alarm
    • Movable Distance of Vacuum Sucker:1800m/m
    • ELECTRICAL CONTROL PANEL ------
    • Isolated control panel. High grade electrical parts are used for controlling, operating, indicating system
    • MACHINE DIMENSION:20634(L) x 4850(W) x 2500(H)m/m
    • *********************************************************************
    • YE I Reserves The Right To Change Specifications Or Materials For Improvement Without Prior Notification.
