CuCo2Be—C17500 (CDA 175) Cobalt Beryllium Copper is primarily utilized in the industry applications that require most highly thermal or electrical conductivity, which features a cobalt alloying addition (2.40-2.70%). C17500 also Offers good strength and hardness characteristics coupled with conductivity in the range of 45-60 percent of copper with ultimate tensile and hardness properties approaching 140 ksi and RB 100 respectively.
Typical Application for C17500 Cobalt Beryllium Copper Alloys:
Electrical Industry:Fuse Clips, Switch Parts, Relay parts, Connectors, Spring Connectors
Fasteners:Washers, Fasteners
Industrial:Springs, Seam Welding Dies, Resistance Welding Equipment, Resistance and Spot Welding Tips, Tooling for Plastic Moulds, Die--Casting Plunger Tips.
Typical Physical Properties:
Density (g/cm3): 8.83
Density before age hardening (g/cm3): 8.75
Elastic Modulus (kg/mm2 (103)): 14.10
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 18 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.48
Melting Range (°C): 1000-1070
Note:
1). the units are based upon Metric.
2). the typical physical properties apply to age hardened products.
Typical Application for C17500 Cobalt Beryllium Copper Alloys:
Electrical Industry:Fuse Clips, Switch Parts, Relay parts, Connectors, Spring Connectors
Fasteners:Washers, Fasteners
Industrial:Springs, Seam Welding Dies, Resistance Welding Equipment, Resistance and Spot Welding Tips, Tooling for Plastic Moulds, Die--Casting Plunger Tips.
Typical Physical Properties:
Density (g/cm3): 8.83
Density before age hardening (g/cm3): 8.75
Elastic Modulus (kg/mm2 (103)): 14.10
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 18 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.48
Melting Range (°C): 1000-1070
Note:
1). the units are based upon Metric.
2). the typical physical properties apply to age hardened products.
Specifications
- Available Sizes:
- Custom Diameter & Sizes, Random Mill lengths
- Available Products (forms):

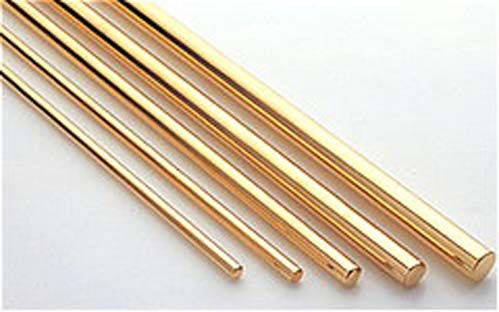

- Round bars, Round wires, Round tube,
- Flat bars, Square bars, Rectangular bars, Hexagon bars, Plates, Sheets, Coils
- Custom shapes are available upon request.
- Rods/Bars/Tubes
- ASTM B441, SAE J461,463; RWMA Class 3
- International Specification:
- Rods/Bars/Tubes:ASTM B441, SAE J461,463; RWMA Class 3
- Strips:ASTM B534
- Sheets:ASTM B534
- Wires:ASTM B441
- Plates:ASTM B534, SAE J461,463; RWMA Class 3
- European Standards: CuCo2Be, DIN 2.1285; CW104C to EN
- Note:
- ASTM:American Society for Testing and Materials
- SAE:Society of Automotive Engineers
- AMS: Aerospace Materials Specification (Published by SAE)
- RWMA: Resistance Welder Manufacturers' Association
- Note:Unless otherwise specified, material will be produced to ASTM.
Features
- Mechanical Properties:
- The Mechanical Properties will be available on request from customers.
- Most Commonly Temper Used:
- Rods/Bars/Tubes: A(TB00),H(TD04),AT(TF00),HT(TH04)
- Strips: A(TB00),1/4 H(TD01),1/2 H(TD02),H(TD04)
- Sheets: A(TB00),1/4 H(TD01),1/2 H(TD02),H(TD04),AT(TF00)
- Wires: A(TB00),1/4 H(TD01),1/2 H(TD02),3/4H(TD03),H(TD04)
- Plates: AT(TF00),HT(TH04)
- Chemical Composition:
- Be: 0.40-0.70%
- Co: 2.40-2.70%
- Cu: Balance
- Note:Copper plus additions equal 99.5% minimum.
