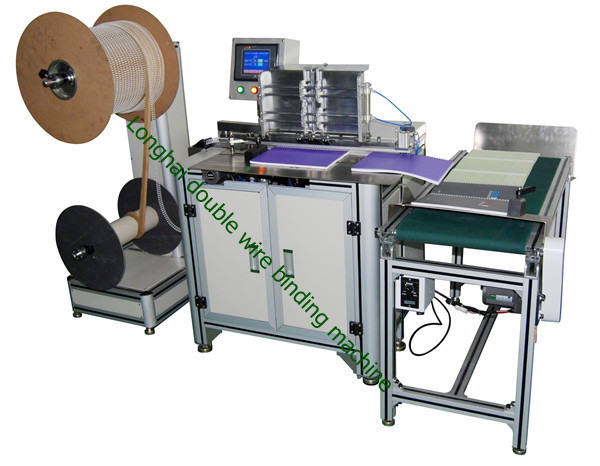

Double Wire Binding Machine
Semiautomatic Double Wire Binding Machine
Our best seller product, most famous and simplest binding machine, perfect binding for calendars, catalogues, notebooks, diaries ect., easy to use, easy to maintain, and extremely sturdy, automatic carry the finished products to the conveyor, it is the ideal binding for your choice.
Model No.: DWC-520A
Features:
Uses double wire on spools, pitch 3:1 and 2:1
Great flexibility, 9 different double wire diameters can be used from 1/4” up to 7/8” with proper tools-size-set
Maximum binding length 520mm
Minimum binding length 50mm
Microprocessor controlled with touch screen
The machine operates electrically and must be connected to a compressed air supply
Binding speed up to 1700 units per hour, effective speed depends on the operator ability and on the products’ features
Optional:
Hanger feeder
Technical Specifications:
Power supply: 220V/1ph/50-60Hz
Power drive: 0.20KW
Compressed air supply: 1.5KW
Air pressure: 6 -8 bar
Size: L 1800 x D 760 x H 1230mm
Weight: 650kgs
Our best seller product, most famous and simplest binding machine, perfect binding for calendars, catalogues, notebooks, diaries ect., easy to use, easy to maintain, and extremely sturdy, automatic carry the finished products to the conveyor, it is the ideal binding for your choice.
Model No.: DWC-520A
Features:
Uses double wire on spools, pitch 3:1 and 2:1
Great flexibility, 9 different double wire diameters can be used from 1/4” up to 7/8” with proper tools-size-set
Maximum binding length 520mm
Minimum binding length 50mm
Microprocessor controlled with touch screen
The machine operates electrically and must be connected to a compressed air supply
Binding speed up to 1700 units per hour, effective speed depends on the operator ability and on the products’ features
Optional:
Hanger feeder
Technical Specifications:
Power supply: 220V/1ph/50-60Hz
Power drive: 0.20KW
Compressed air supply: 1.5KW
Air pressure: 6 -8 bar
Size: L 1800 x D 760 x H 1230mm
Weight: 650kgs
