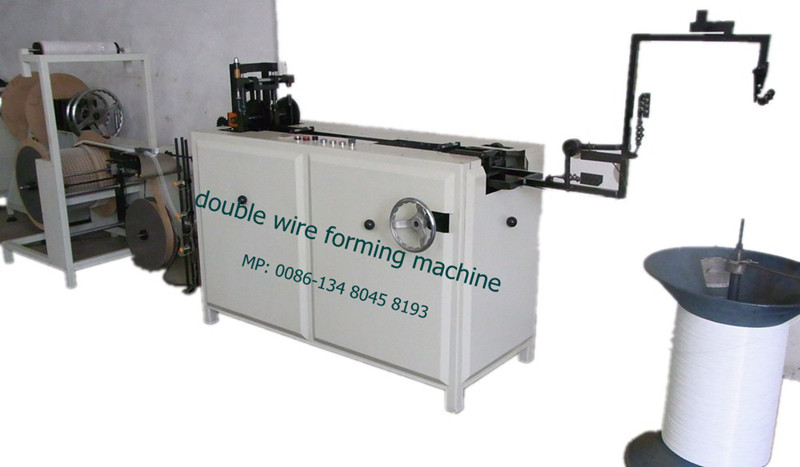

Double Wire Forming Machine
Double Wire Forming Machine
Have been approved to the most economy and the best quality double wire forming machine in China, collect all the advantages from China machines, and copy Womako spooler technologies, the best right choice for you.
Model: DWF-111
Features:
Forming dies replaced easily for double wire sizes
In-line connection with bookbinding machine, such as double wire binding machine / double wire cutting machine
Consistent quality of double wire output
Optional:
Spooler / Bookbinding machine / Cutting machine (per-cut as per length)
Technical Specifications:
Forming speed: up to 600 loops per minute
Power supply: 220V/50Hz
Power drive for forming machine: 0.75KW
Power drive for spooler: 0.37KW
Size: L 1500 x D 600 x H 1300 mm
Net weight: 520 kgs
Have been approved to the most economy and the best quality double wire forming machine in China, collect all the advantages from China machines, and copy Womako spooler technologies, the best right choice for you.
Model: DWF-111
Features:
Forming dies replaced easily for double wire sizes
In-line connection with bookbinding machine, such as double wire binding machine / double wire cutting machine
Consistent quality of double wire output
Optional:
Spooler / Bookbinding machine / Cutting machine (per-cut as per length)
Technical Specifications:
Forming speed: up to 600 loops per minute
Power supply: 220V/50Hz
Power drive for forming machine: 0.75KW
Power drive for spooler: 0.37KW
Size: L 1500 x D 600 x H 1300 mm
Net weight: 520 kgs
