1.Material:A126B
2.Trade Term:FOB
3.Certification:ISO,CE, DQS
4.Pressure:125LB
5.ball valve,Factroy Price!
Specification

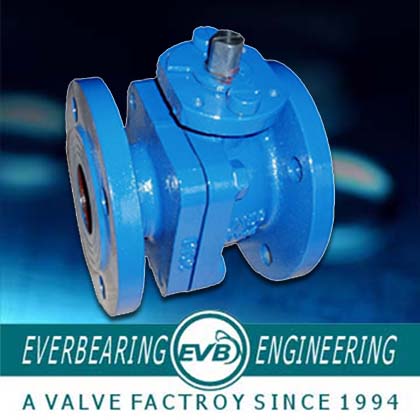

Structre type: CAST IRON FLANGED BALL VALVE
REDUCED PORT :HANDLE LEVER
Face to face : ANSIN B16.10 CLASS 125
Test and Examination: API 598
Features:
BLOW -OUT PROOF STAINLESS STEEL STEM
FULL PORT 2" -12" (DN50 - DN300)
SAFETY WORKING PRESSURE: 200PSI,1.6MPa
Materials
NO. Part Material
1 L-Body Cast lron A216B /ASTM A536
2 R-Body Cast lron A216B /ASTM A536
3 Ball SS304/CF8
4 Gasket PTFE
5 Ball Seat PTFE
6 Packing Graphite/PTEF
7 Bolt and Nut A193 Gr B7/A194 Gr 2H
8 Stem Stainless Steel
9 Gland Bush Stainless Steel
10 Thrust washer PTFE/NYLON
11 Handle ASTM A536
2.Trade Term:FOB
3.Certification:ISO,CE, DQS
4.Pressure:125LB
5.ball valve,Factroy Price!
Specification
Structre type: CAST IRON FLANGED BALL VALVE
REDUCED PORT :HANDLE LEVER
Face to face : ANSIN B16.10 CLASS 125
Test and Examination: API 598
Features:
BLOW -OUT PROOF STAINLESS STEEL STEM
FULL PORT 2" -12" (DN50 - DN300)
SAFETY WORKING PRESSURE: 200PSI,1.6MPa
Materials
NO. Part Material
1 L-Body Cast lron A216B /ASTM A536
2 R-Body Cast lron A216B /ASTM A536
3 Ball SS304/CF8
4 Gasket PTFE
5 Ball Seat PTFE
6 Packing Graphite/PTEF
7 Bolt and Nut A193 Gr B7/A194 Gr 2H
8 Stem Stainless Steel
9 Gland Bush Stainless Steel
10 Thrust washer PTFE/NYLON
11 Handle ASTM A536
Certificate
- ISO 9001:2000 SA8000
Main Products
cast iron valve
