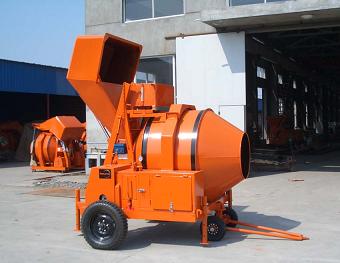

TOPALL 350L diesel concrete mixer
Diesel engine powered concrete mixer with hydraulic tipping hopper
Model: RDCM350-11DHA(JZR350)
Capacity of discharging: 350L
Capacity of loading: 560L
Capacity of water tank: 110L
Drum rotating speed: 13r.p.m
Capacity per hour: 10-14m3/h
Powered of diesel engine: 15HP
Power source: Diesel engine,single cylinder,water-cooled with radiator With battery starter
Max. towing speed: 20Km/h
Overall size: 3250*2240*3200mm
Weight: 1790Kg
Hydraulic tipping hopper
Model:RDCM350-11DHB(JZR350)
Power: 15HP
Hopper hoisting system Hydraulic tipping system
Power source: Diesel engine/water-cooled
Capacity (unmixed): 500 liter / 17.5 cft
Capacity (mixed): 350 liter / 12.5 cft
Mixing time: 45 sec.
Water tank volume: 65 litres
Max. Aggregate Dia. 60mm
Max. trailed speed: 20km/h
Capacity Per Hour: 15 cum / 530 cuf
Driving axle Two wheel or four wheel
Dimension: 3250*2240*3200mm
Weight: 1840kg
This is a concrete mixer with biconical mixing drum,positive tum for mixing. and reverse turn for automatic discharging.It can mix the concrete of plasticity and fluidity,and is widely being used by the projects of construction,highway,bridge, hydroelecticity and middle/small concrete members factories.
This self loading concrete mixer has the advantages of simple construction,high reliability,thorough mixing,greater output,easy operation,flexible transposing,etc.It is can be supplied with a generator,so that it can also be used in placs without electric engineering,and many other branches of civil engineering.
Diesel engine powered concrete mixer with wire rope hoisting tipping hopper
Model:RDCM350-11D(JZR350)
Capacity of discharging: 350L
Capacity of loading: 560L
Capacity of water tank: 110L
Drum rotating speed: 13r.p.m
Capacity per hour: 10-14m3/h
Powered of diesel engine: 15HP
Power source: Diesel engine,single cylinder,water-cooled with radiator With battery starter
Max. towing speed: 20Km/h
Overall size: 3100*2320*3070mm
Weight: 1850Kg
Wire rope hoisting tipping hopper
Model: RDCM350-11DHA(JZR350)
Capacity of discharging: 350L
Capacity of loading: 560L
Capacity of water tank: 110L
Drum rotating speed: 13r.p.m
Capacity per hour: 10-14m3/h
Powered of diesel engine: 15HP
Power source: Diesel engine,single cylinder,water-cooled with radiator With battery starter
Max. towing speed: 20Km/h
Overall size: 3250*2240*3200mm
Weight: 1790Kg
Hydraulic tipping hopper
Model:RDCM350-11DHB(JZR350)
Power: 15HP
Hopper hoisting system Hydraulic tipping system
Power source: Diesel engine/water-cooled
Capacity (unmixed): 500 liter / 17.5 cft
Capacity (mixed): 350 liter / 12.5 cft
Mixing time: 45 sec.
Water tank volume: 65 litres
Max. Aggregate Dia. 60mm
Max. trailed speed: 20km/h
Capacity Per Hour: 15 cum / 530 cuf
Driving axle Two wheel or four wheel
Dimension: 3250*2240*3200mm
Weight: 1840kg
This is a concrete mixer with biconical mixing drum,positive tum for mixing. and reverse turn for automatic discharging.It can mix the concrete of plasticity and fluidity,and is widely being used by the projects of construction,highway,bridge, hydroelecticity and middle/small concrete members factories.
This self loading concrete mixer has the advantages of simple construction,high reliability,thorough mixing,greater output,easy operation,flexible transposing,etc.It is can be supplied with a generator,so that it can also be used in placs without electric engineering,and many other branches of civil engineering.
Diesel engine powered concrete mixer with wire rope hoisting tipping hopper
Model:RDCM350-11D(JZR350)
Capacity of discharging: 350L
Capacity of loading: 560L
Capacity of water tank: 110L
Drum rotating speed: 13r.p.m
Capacity per hour: 10-14m3/h
Powered of diesel engine: 15HP
Power source: Diesel engine,single cylinder,water-cooled with radiator With battery starter
Max. towing speed: 20Km/h
Overall size: 3100*2320*3070mm
Weight: 1850Kg
Wire rope hoisting tipping hopper
